SC311YN16VIAA6

SC311YN16VIAA6

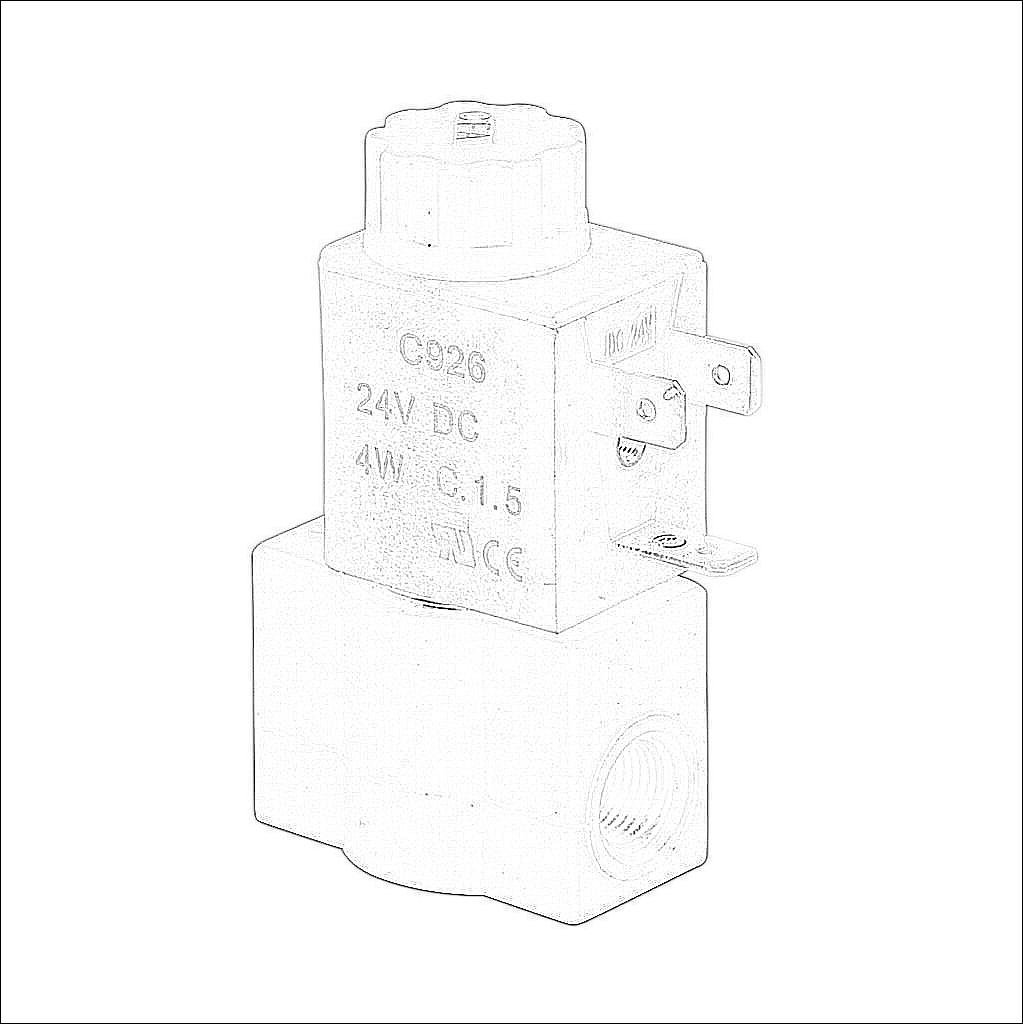

CFA solenoid valve, 2-port (2-way), 2-position, N.C., nylon body, Viton seal(s), 1/8in female NPT inlet(s), 1/8in female NPT outlet(s), Cv=0.28, 0 psi minimum operating pressure, 24 VDC operating voltage, 11mm DIN style wiring plug.

$73.75
/
Technical Data
BrandCFA
ItemValve
Working FluidPneumatic, inert gas, water or coolant
Valve TypeSolenoid process
Port Quantity2-port (2-way)
Number Of Positions2
Valve ConfigurationN.C.
ActionSingle solenoid spring return
Body MaterialNylon
Seal MaterialViton
Inlet Port1/8in female NPT
Outlet Port1/8in female NPT
Flow Coefficient0.28
Maximum Operating Pressure36 psi
Minimum Operating Pressure0 psi
Working Fluid Temperature122 deg F maximum
Operating Voltage24 VDC
Power Rating4W
Electrical Connection11mm DIN style wiring plug
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
