| Technical Data | ||
|---|---|---|
| Brand | CFA | |

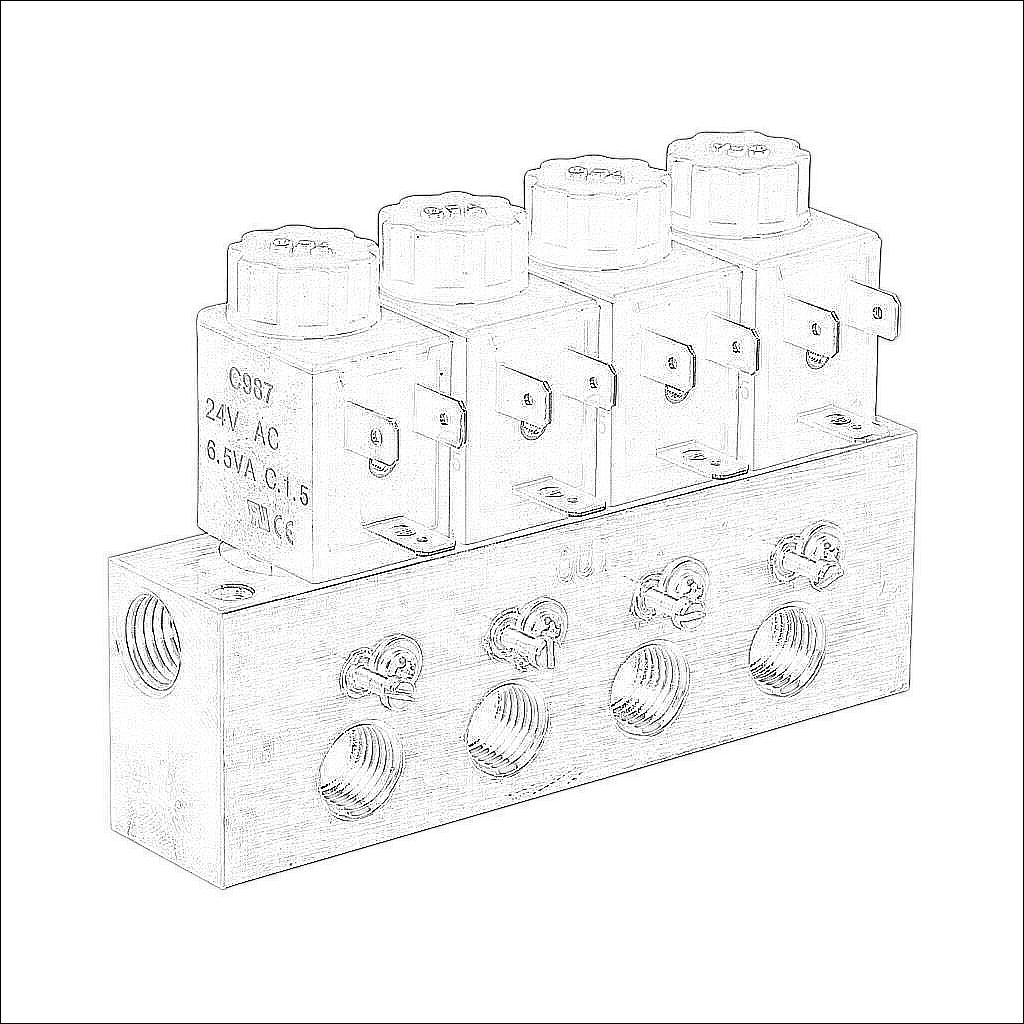

| Item | Valve bank | |
| Valve Type | Solenoid process | |
| Working Fluid | Pneumatic, inert gas, water or coolant | |
| Number of Stations | 4 | |
| Port Quantity | 2-port (2-way) | |
| Number Of Positions | 2 | |
| Valve Configuration | N.C. | |
| Body Material | Brass | |
| Seal Material | Viton | |
| Inlet Port | 1/4in female NPT | |
| Outlet Port | 1/4in female NPT | |
| Flow Coefficient | 0.14 | |
| Metering | Individual | |
| Minimum Operating Pressure | 0 psi | |
| Maximum Operating Pressure | 203 psi | |
| Working Fluid Temperature | 230 deg F maximum | |
| Operating Voltage | 24 VAC | |
| Power Rating | 6.5 VA | |
| Electrical Connection | 11mm DIN style wiring plug | |
