SE-SW10MG-2P

SE-SW10MG-2P

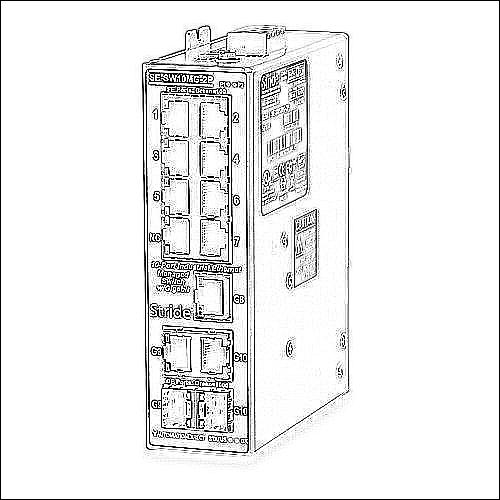

STRIDE industrial Layer 2 managed Ethernet switch, 10 ports, (7) Ethernet 10/100Base-T (RJ45), (3) Ethernet Gigabit (RJ45) and (2) SFP combo Gigabit port(s), Modbus TCP, -40 to +75 deg C, metal housing, IP40, 35mm DIN rail mount.

$2,102.50
/
Technical Data
BrandSTRIDE
ItemEthernet switch
GradeIndustrial
Switch TypeLayer 2 managed
Number of Ports10
Communication Port and Connection Type(s)
  • (7) Ethernet 10/100Base-T (RJ45)
  • (3) Ethernet Gigabit (RJ45)
  • (2) SFP combo Gigabit
Communication Standard(s)
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3z 1000Base-X
  • IEEE 802.3x Flow Control
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1q VLAN Tagging
  • IEEE 802.1p QoS/CoS
  • IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
Port Protocol(s)
  • Modbus TCP
  • webserver (secure HTTPs)
Port Speed(s)
  • 10/100/1000 Mbps auto-detect
Redundant Input PowerYes
Nominal Input Voltage10-30 VDC
Operating Temperature-40 to +75 deg C
Housing MaterialMetal
IP RatingIP40
Mounting35mm DIN rail
Additional InformationOptional SFP modules sold separately
ApplicationHazardous location rated
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
