SE-SW5U-SC-WT

SE-SW5U-SC-WT

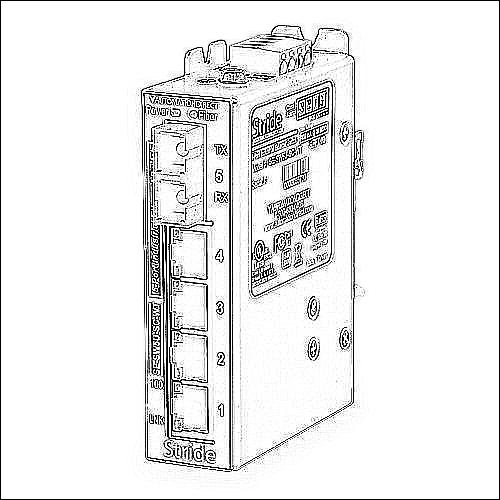

STRIDE industrial unmanaged Ethernet switch, 5 ports, (4) Ethernet 10/100Base-T (RJ45) and (1) multi-mode SC 100FX fiber port(s), -40 to +85 deg C, metal housing, IP40, 35mm DIN rail mount.

$452.50
/
Technical Data
BrandSTRIDE
ItemEthernet switch
GradeIndustrial
Switch TypeUnmanaged
Number of Ports5
Communication Port and Connection Type(s)
  • (4) Ethernet 10/100Base-T (RJ45)
  • (1) multi-mode SC 100FX fiber
Communication Standard(s)
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
  • IEEE 802.3x Flow Control
Port Speed(s)
  • 10/100 Mbps auto-detect
  • 100 Mbps fiber
Redundant Input PowerYes
Operating Temperature-40 to +85 deg C
Housing MaterialMetal
IP RatingIP40
Mounting35mm DIN rail
ApplicationHazardous location rated
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
