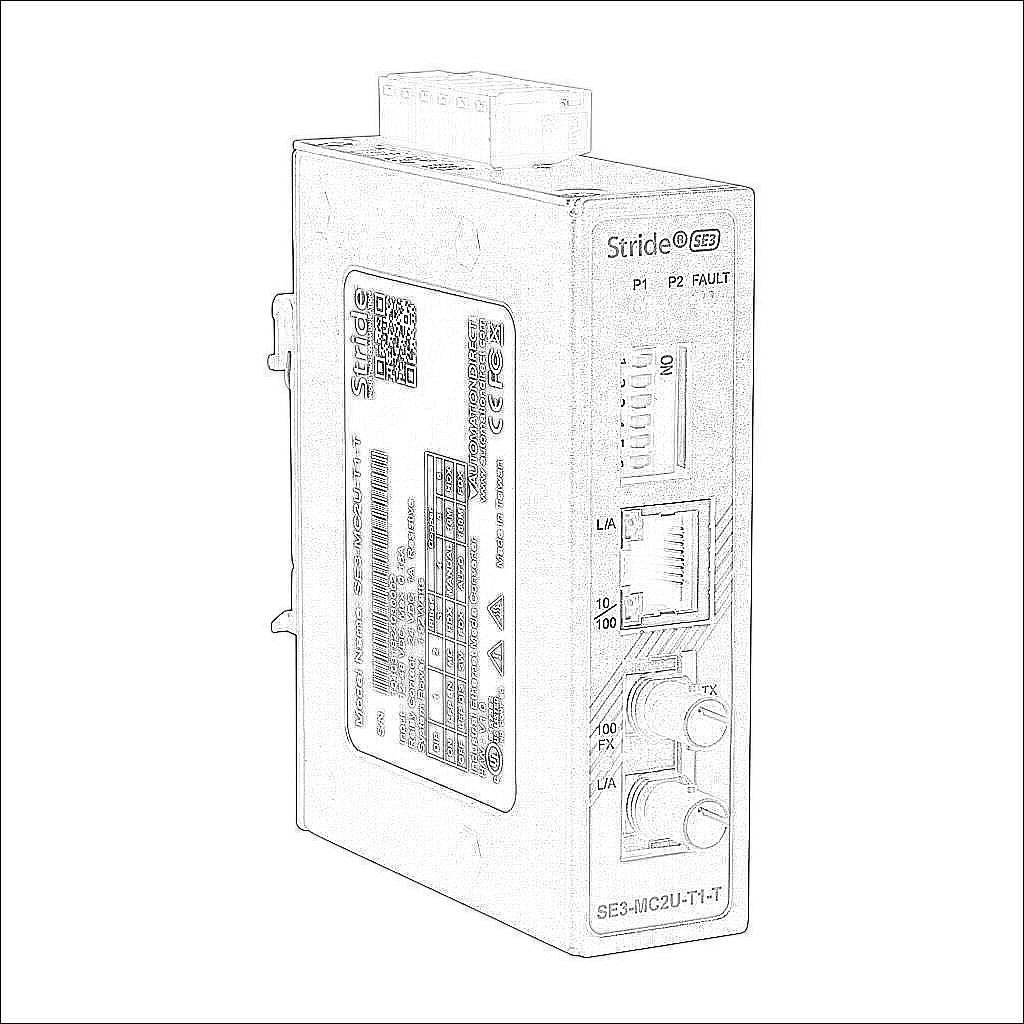

SE3-MC2U-T1-T

SE3-MC2U-T1-T

STRIDE industrial unmanaged Ethernet media converter, 2 ports, (1) Ethernet 10/100Base-T (RJ45) and (1) multi-mode ST 100FX fiber port(s), (1) Form A (SPST) relay, -40 to +80 deg C, metal housing, IP30, 35mm DIN rail or panel mount.

$197.50
/
Technical Data
BrandSTRIDE
ItemEthernet media converter
GradeIndustrial
Switch TypeUnmanaged
Nominal Input Voltage12-48 VDC
Number of Ports2
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) multi-mode ST 100FX fiber
Communication Standard(s)
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
  • IEEE 802.3x Flow Control
Port Speed(s)
  • 10/100 Mbps auto-detect
  • 100 Mbps fiber
Redundant Input PowerYes
Relay Type(1) Form A (SPST) relay
Operating Temperature-40 to +80 deg C
Housing MaterialMetal
IP RatingIP30
Mounting35mm DIN rail or panel
Additional InformationRedundant power input design, 12-48 VDC
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
