SE3-SW6U-2C1-T

SE3-SW6U-2C1-T

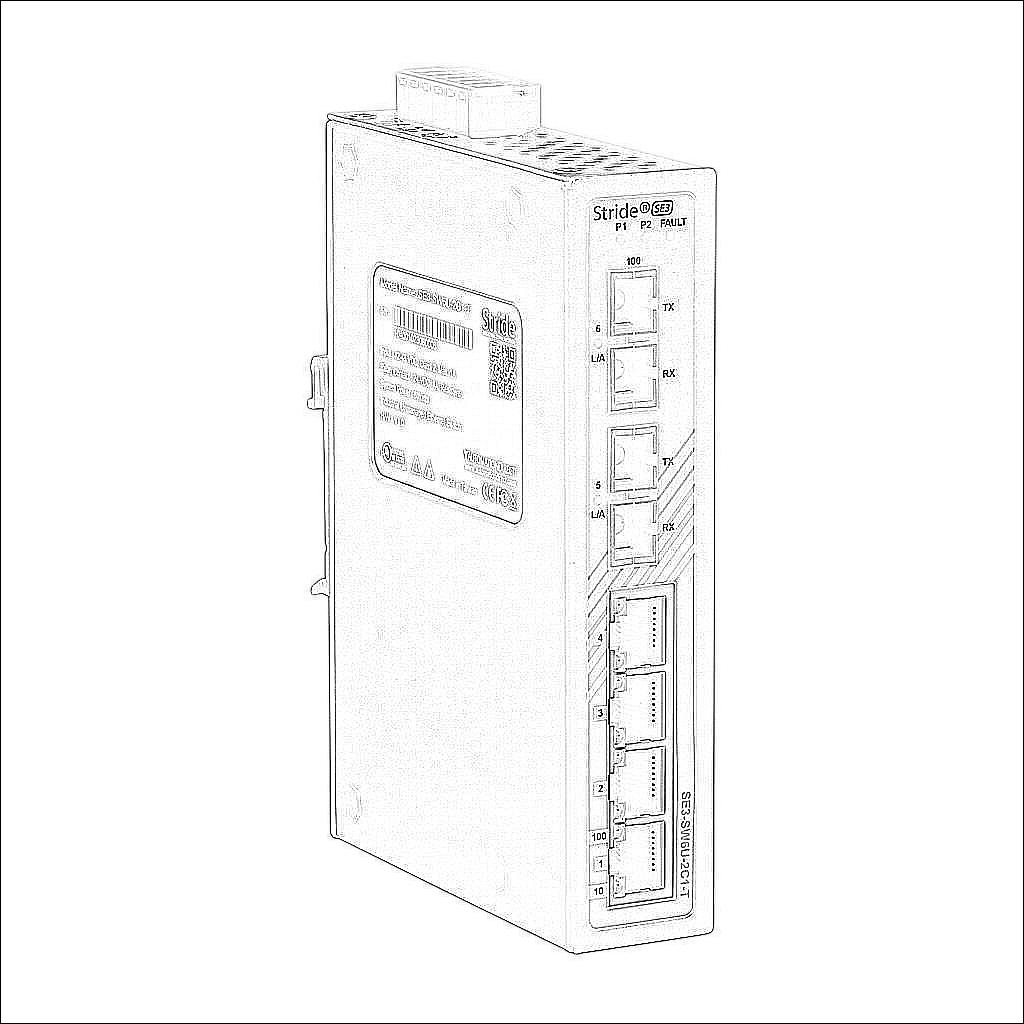

STRIDE industrial unmanaged Ethernet switch, 6 ports, (4) Ethernet 10/100Base-T (RJ45) and (2) multi-mode SC 100FX fiber port(s), -40 to +75 deg C, metal housing, IP30, 35mm DIN rail or panel mount.

$306.25
/
Technical Data
BrandSTRIDE
ItemEthernet switch
GradeIndustrial
Switch TypeUnmanaged
Number of Ports6
Communication Port and Connection Type(s)
  • (4) Ethernet 10/100Base-T (RJ45)
  • (2) multi-mode SC 100FX fiber
Communication Standard(s)
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
  • IEEE 802.3x Flow Control
Port Speed(s)
  • 10/100 Mbps auto-detect
  • 100 Mbps fiber
Redundant Input PowerYes
Nominal Input Voltage12-48 VDC
Number of Output Points1
Nominal Output Voltage24 VDC
Relay Configuration(1) Form A (SPST) relay
Number of Isolated Commons1
Number of Points per Common1
Load Current1A/point
Operating Temperature-40 to +75 deg C
Housing MaterialMetal
IP RatingIP30
Mounting35mm DIN rail or panel
ApplicationHazardous location rated
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
