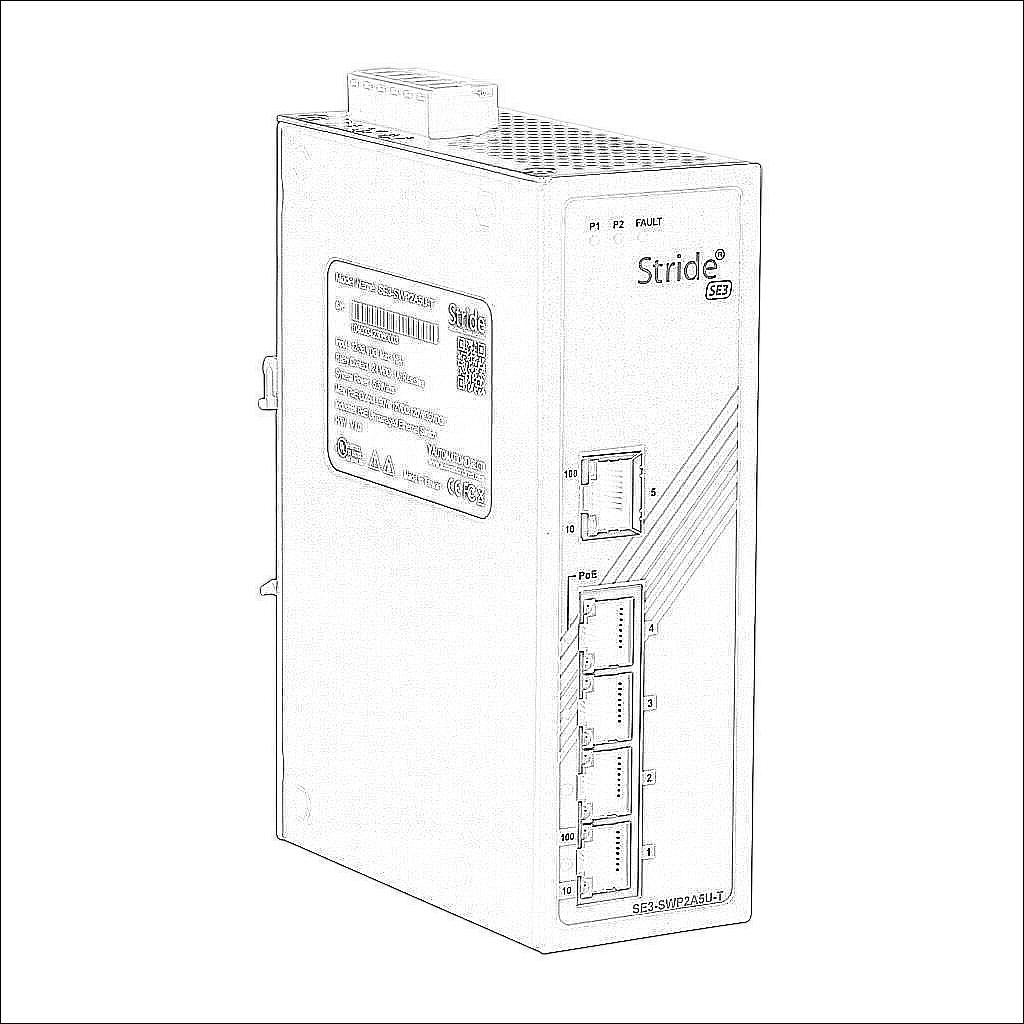

SE3-SWP2A5U-T

SE3-SWP2A5U-T

STRIDE industrial unmanaged PoE+ switch, IEEE 802.3af/at, 120W, 5 ports, (4) PoE+ 10/100Base-T (RJ45) and (1) Ethernet 10/100Base-T (RJ45) port(s), 12-36 VDC nominal input, -40 to +75 deg C, NEMA TS2, 35mm DIN rail or panel mount, hazardous location rated.

$362.50
/
Technical Data
BrandSTRIDE
ItemPoE+ switch
GradeIndustrial
Switch TypeUnmanaged
PoE StandardIEEE 802.3af/at
Maximum PoE Output Power120W
Maximum PoE Output Power per Port30W
Number of Ports5
Communication Port and Connection Type(s)
  • (4) PoE+ 10/100Base-T (RJ45)
  • (1) Ethernet 10/100Base-T (RJ45)
Communication Standard(s)
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
  • IEEE 802.3x Flow Control
  • IEEE 802.3af PoE
  • IEEE 802.at PoE+
Port Speed(s)
  • 10/100 Mbps auto-detect
Redundant Input PowerYes
Nominal Input Voltage12-36 VDC
Number of Output Points1
Nominal Output Voltage24 VDC
Relay Configuration(1) Form A (SPST) relay
Number of Isolated Commons1
Number of Points per Common1
Load Current1A/point
Operating Temperature-40 to +75 deg C
Housing MaterialMetal
IP RatingIP30
NEMA RatingTS2
Mounting35mm DIN rail or panel
Additional InformationCapable of being powered by 12-36 VDC while still providing 48-52 VDC required by the PoE standard.
ApplicationHazardous location rated
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
