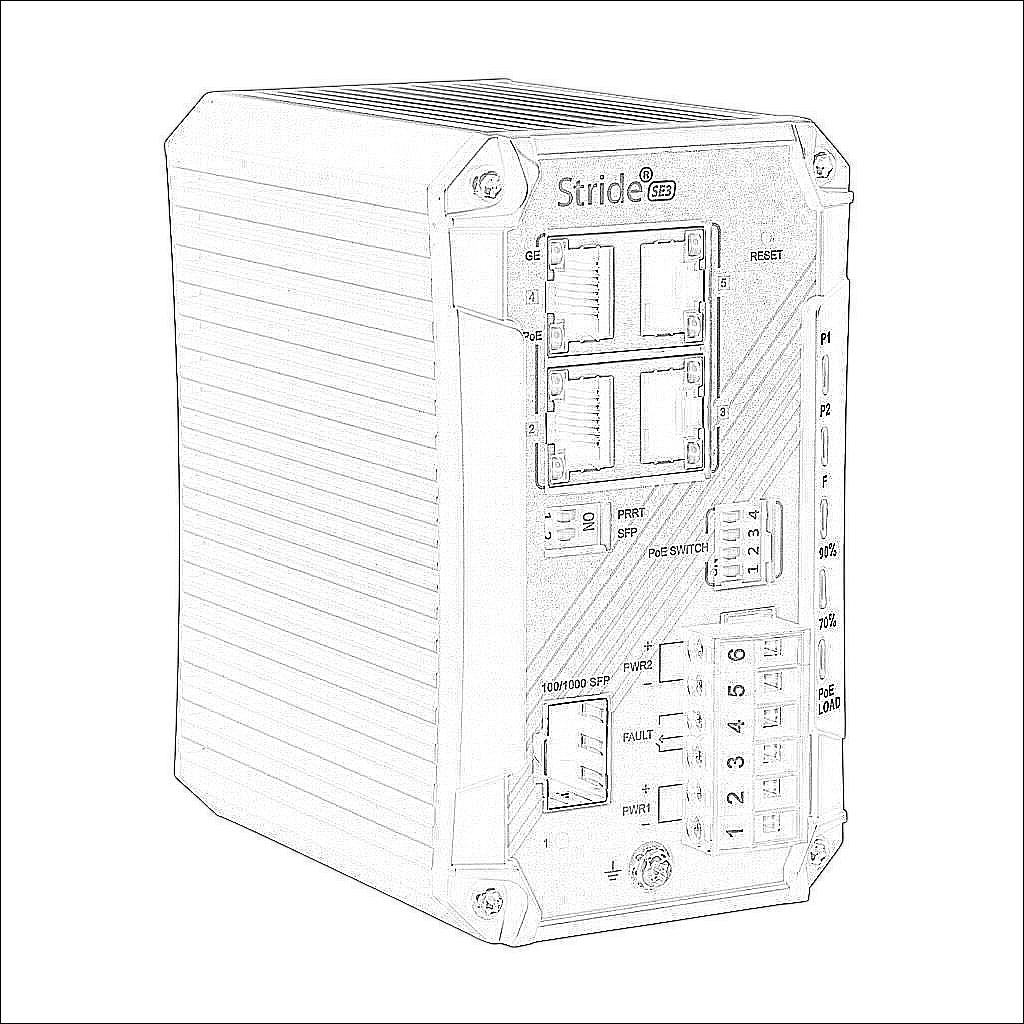

SE3-SWP2B5UG-1P-T

SE3-SWP2B5UG-1P-T

STRIDE industrial unmanaged PoE++ switch, IEEE 802.3af/at/bt, up to 240W, 5 ports, (4) PoE++ 10/100/1000Base-T (RJ45) and (1) SFP combo Gigabit port(s), 9-55 VDC nominal input, -40 to +75 deg C, 35mm DIN rail or panel mount.

$810
/
Technical Data
BrandSTRIDE
ItemPoE++ switch
GradeIndustrial
Switch TypeUnmanaged
PoE StandardIEEE 802.3af/at/bt
Maximum PoE Output Power60W @ 9 VDC, 90W @ 12 VDC, 150W @ 24 VDC, 240W @ 48-55 VDC (with iPoE budget control)
Maximum PoE Output Power per Port90W
Number of Ports5
Communication Port and Connection Type(s)
  • (4) PoE++ 10/100/1000Base-T (RJ45)
  • (1) SFP combo Gigabit
Communication Standard(s)
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3z 1000Base-X
  • IEEE 802.3x Flow Control
  • IEEE 802.3af PoE
  • IEEE 802.at PoE+
  • IEEE 802.3bt PoE++
Port Speed(s)
  • 10/100/1000 Mbps auto-detect
  • 100/1000 Mbps fiber
Redundant Input PowerYes
Nominal Input Voltage9-55 VDC
Number of Output Points1
Nominal Output Voltage24 VDC
Relay Configuration(1) Form A (SPST) relay
Number of Isolated Commons1
Number of Points per Common1
Load Current1A/point
Operating Temperature-40 to +75 deg C
Housing MaterialMetal
IP RatingIP30
Mounting35mm DIN rail or panel
Additional InformationRedundant power input design, 9-55 VDC. Optional SFP modules sold separately
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
