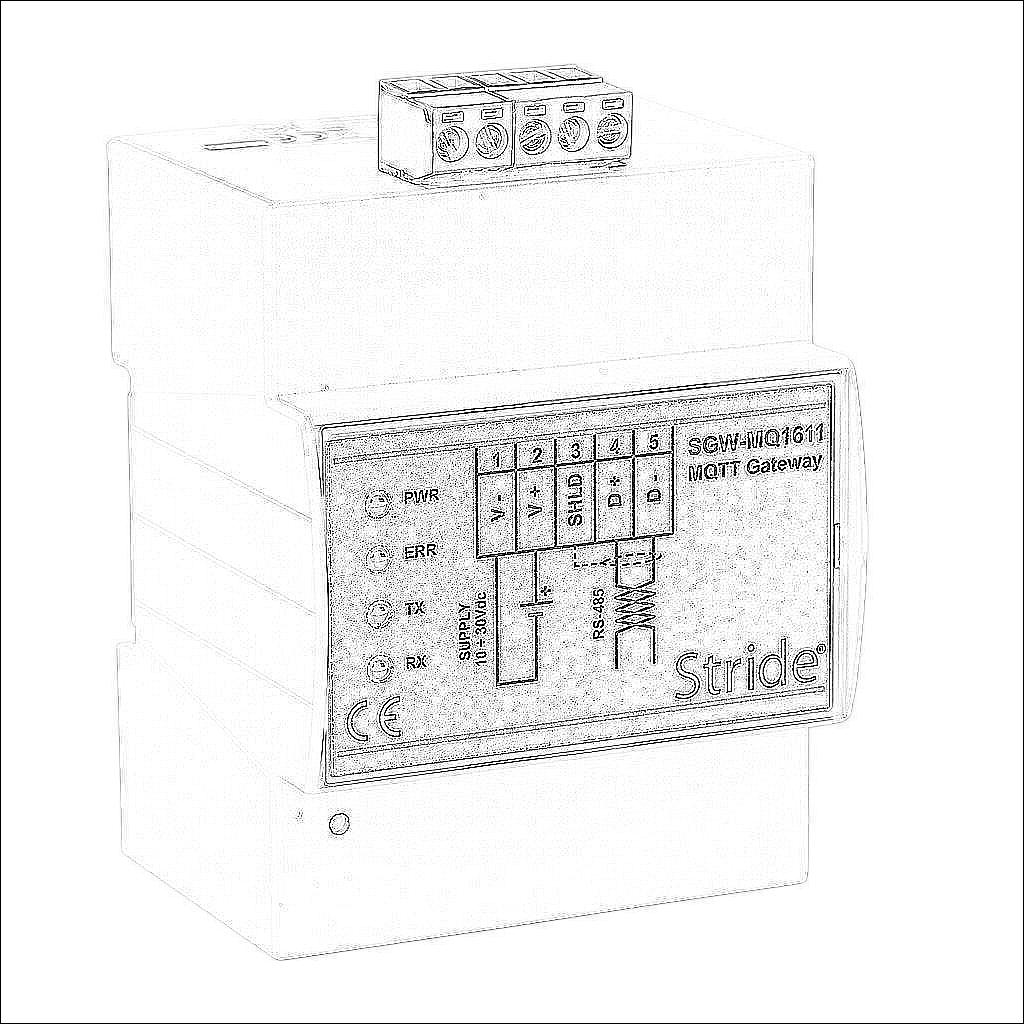

SGW-MQ1611-WF

SGW-MQ1611-WF

STRIDE industrial MQTT gateway, (1) Ethernet 10/100Base-T (RJ45) and (1) RS-485 (2-pin terminal) port(s), wired + 802.11 a/b/g/n/ac WiFi Internet connectivity, 10-30 VDC required.

$410
/
Technical Data
BrandSTRIDE
ItemMQTT gateway
GradeIndustrial
Internet ConnectivityWired + 802.11 a/b/g/n/ac WiFi
Number of Ports2
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-485 (2-pin terminal)
Port Protocol(s)
  • MQTT Client
  • MQTTs Client
  • Modbus RTU Master
  • Modbus TCP Client
  • webserver (non-secure HTTP)
Port Speed(s)
  • 10/100 Mbps auto-detect
  • up to 115.2 Kbps
ModesCached
Number of Simultaneous Ethernet Connections8
Number of Serial Devices32
Operating Temperature0 to +60 deg C
Housing MaterialPlastic
IP RatingIP20
Mounting35mm DIN rail
External Power Requirement10-30 VDC
Frequency BandsWiFi: 2.4/5.5 GHz
InterfaceBrowser (non-secure)
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
