| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

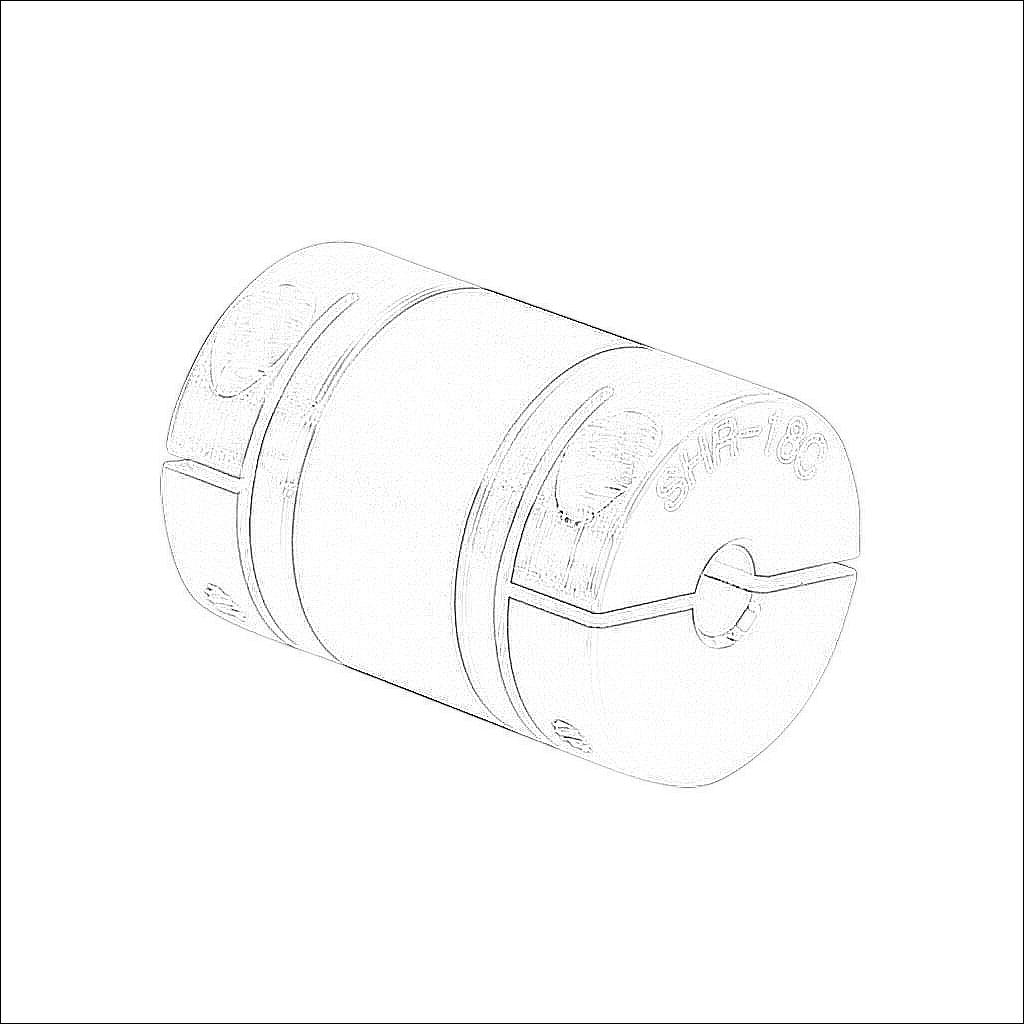

| Item | Drive coupling | |
| Coupling Type | Servo high gain | |
| Material | Aluminum alloy | |
| Rated Torque | 1.9 N-m | |
| Maximum Torque | 3.8 N-m | |
| Slip Torque | 1.6 N-m | |
| Maximum Angular Misalignment | 1.5 degrees | |
| Maximum Parallel Misalignment | 0.15mm | |
| Maximum RPM | 33000 | |
| Attachment Style | Clamp | |
| Coupling Size | 18 | |
| Overall Length | 25.5mm | |
| Bore Diameter | 5mm | |
| Bore Diameter 2 | 8mm | |
| Outside Diameter | 17.8mm | |
| Clamp Screw Fastening Torque | 0.6 N-m | |
| Clamp Screw Size | M2-0.4 x 6mm | |
