| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

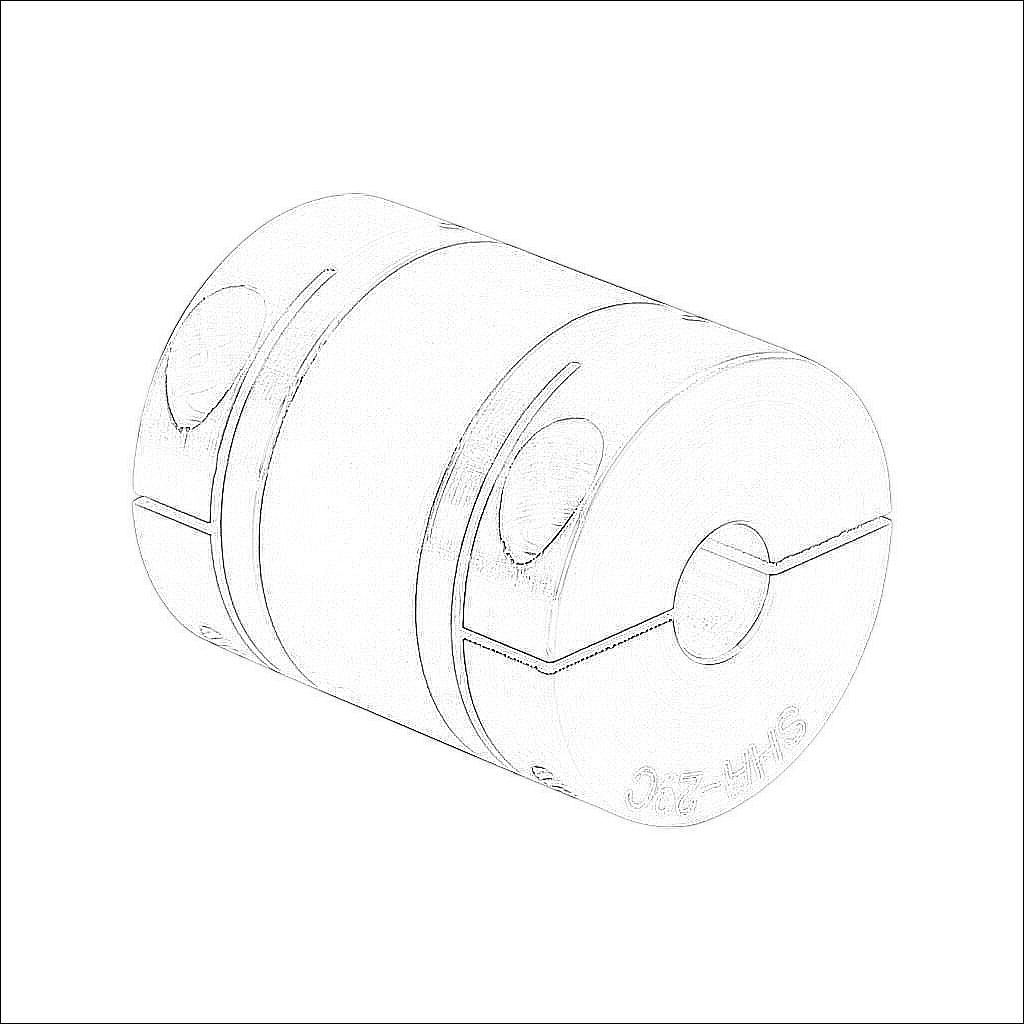

| Item | Drive coupling | |
| Coupling Type | Servo high gain | |
| Material | Aluminum alloy | |
| Rated Torque | 5.7 N-m | |
| Maximum Torque | 11.4 N-m | |
| Slip Torque | 5 N-m | |
| Maximum Angular Misalignment | 1.5 degrees | |
| Maximum Parallel Misalignment | 0.2mm | |
| Maximum RPM | 21000 | |
| Attachment Style | Clamp | |
| Coupling Size | 29 | |
| Overall Length | 35mm | |
| Bore Diameter | 8mm | |
| Bore Diameter 2 | 8mm | |
| Outside Diameter | 28.8mm | |
| Clamp Screw Fastening Torque | 1.8 N-m | |
| Clamp Screw Size | M3-0.5 x 10mm | |
