| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

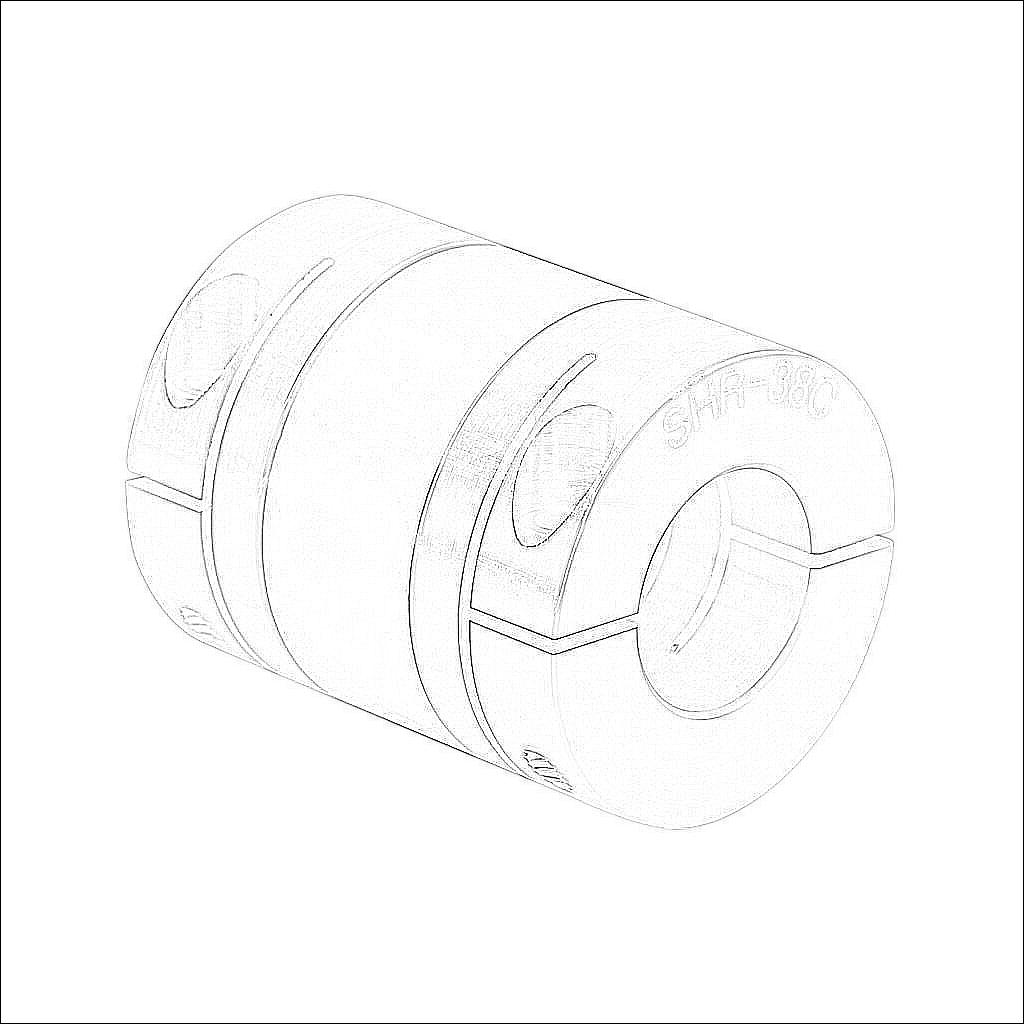

| Item | Drive coupling | |
| Coupling Type | Servo high gain | |
| Material | Aluminum alloy | |
| Rated Torque | 12 N-m | |
| Maximum Torque | 24 N-m | |
| Maximum Angular Misalignment | 1.5 degrees | |
| Maximum Parallel Misalignment | 0.2mm | |
| Maximum RPM | 16000 | |
| Attachment Style | Clamp | |
| Coupling Size | 38 | |
| Overall Length | 47mm | |
| Bore Diameter | 19mm | |
| Bore Diameter 2 | 19mm | |
| Outside Diameter | 37.8mm | |
| Clamp Screw Fastening Torque | 3.7 N-m | |
| Clamp Screw Size | M4-0.7 x 14mm | |
