| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

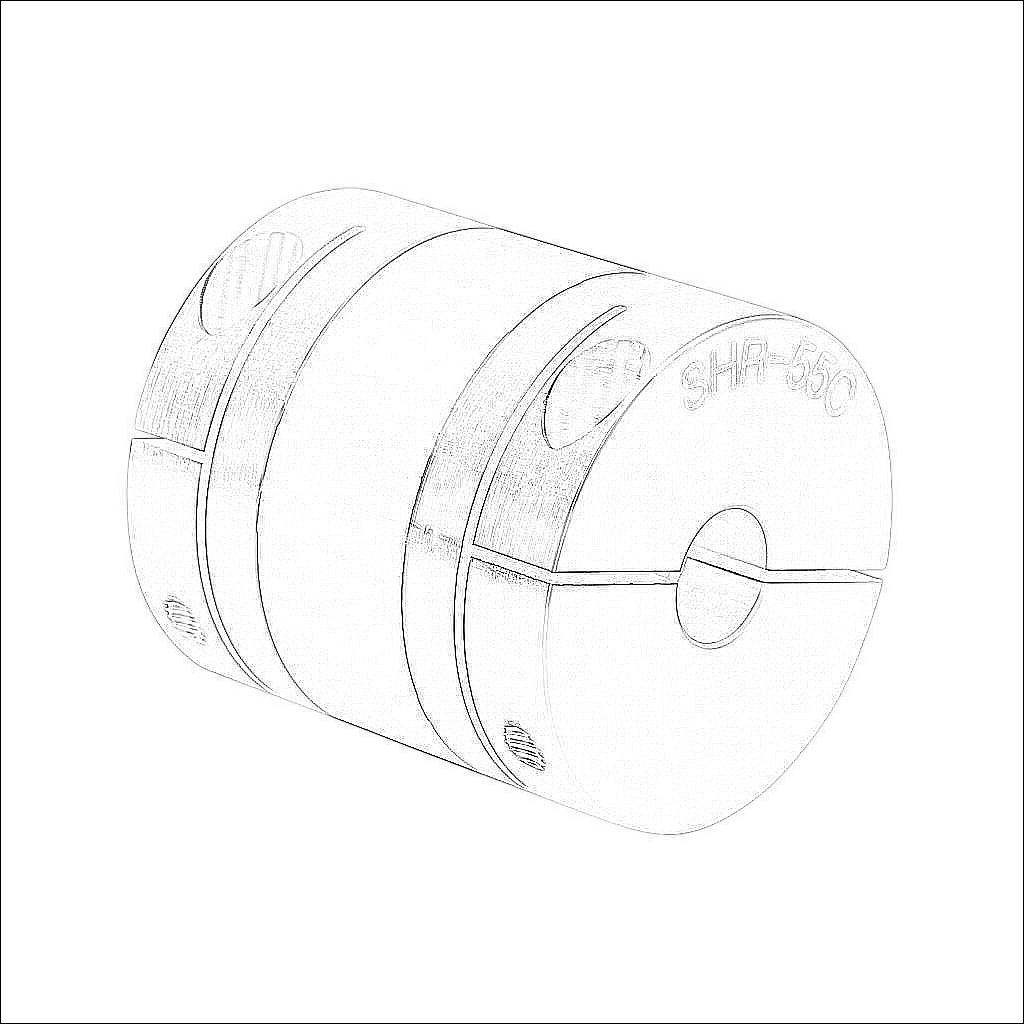

| Item | Drive coupling | |
| Coupling Type | Servo high gain | |
| Material | Aluminum alloy | |
| Rated Torque | 32 N-m | |
| Maximum Torque | 64 N-m | |
| Maximum Angular Misalignment | 1.5 degrees | |
| Maximum Parallel Misalignment | 0.2mm | |
| Maximum RPM | 11000 | |
| Attachment Style | Clamp | |
| Coupling Size | 55 | |
| Overall Length | 59mm | |
| Bore Diameter | 14mm | |
| Bore Diameter 2 | 14mm | |
| Outside Diameter | 54.8mm | |
| Clamp Screw Fastening Torque | 8.5 N-m | |
| Clamp Screw Size | M5-0.8 x 20mm | |
