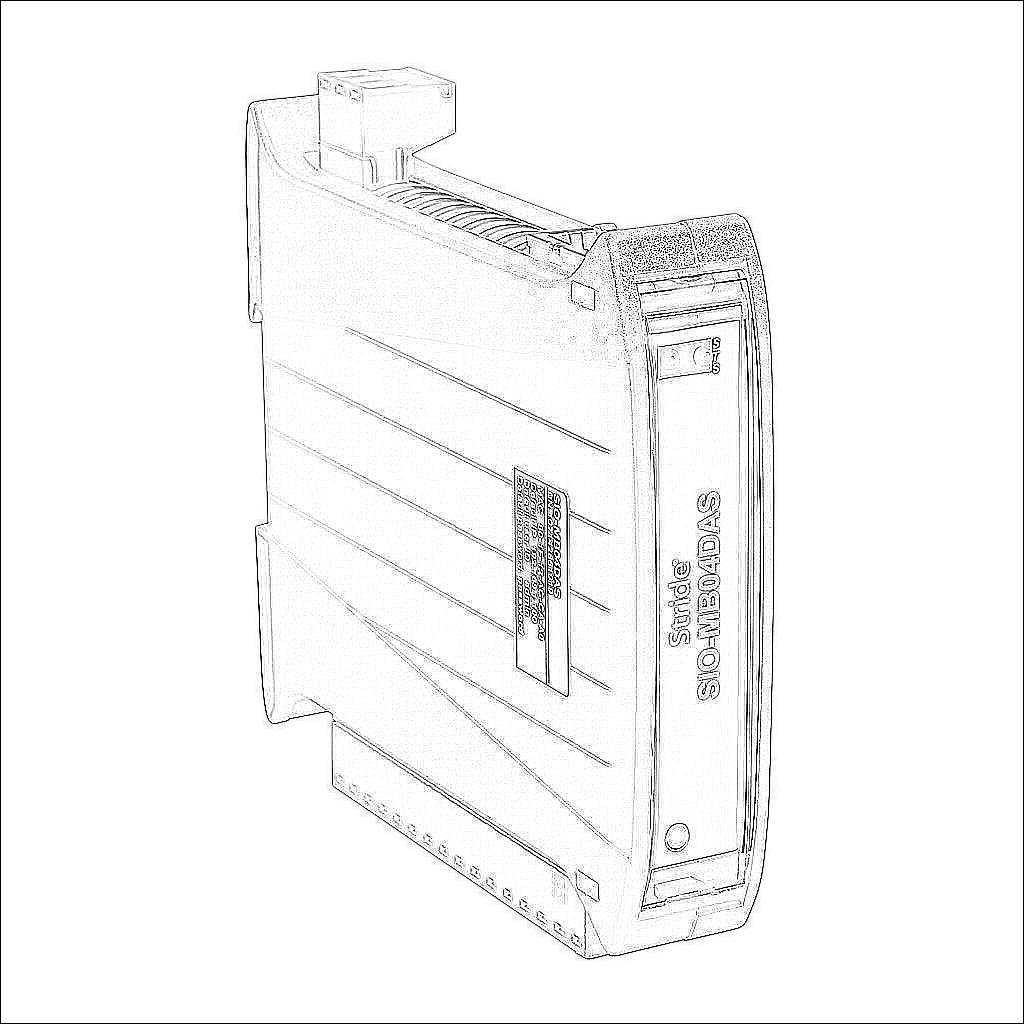

SIO-MB04DAS

STRIDE analog output module, 4-channel, current/voltage, 16-bit, isolated, (1) Ethernet (RJ45) port(s), Modbus TCP, external 18-30 VDC required.

$307.50

		Technical Data
	Brand	STRIDE
	Item	Output module
	I/O Module Type	Analog
	Number Of Output Channels	4
	Output Signal Type	Current/voltage
	Analog Output Type	Sinking/sourcing
	Number of Isolated Output Commons	4
	Isolated Channels	Yes
	Output Resolution	16-bit
	Output Current Signal Range	0-20 mA
	Output Voltage Signal Range	0-10 VDC
	Communication Port and Connection Type(s)	(1) Ethernet (RJ45)
	Port Protocol(s)	Modbus TCP Server webserver (non-secure HTTP)
	Port Speed(s)	10/100 Mbps
	External Power Requirement	18-30 VDC
	Programming Software	None, configure via Internet browser

Downloads

Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
