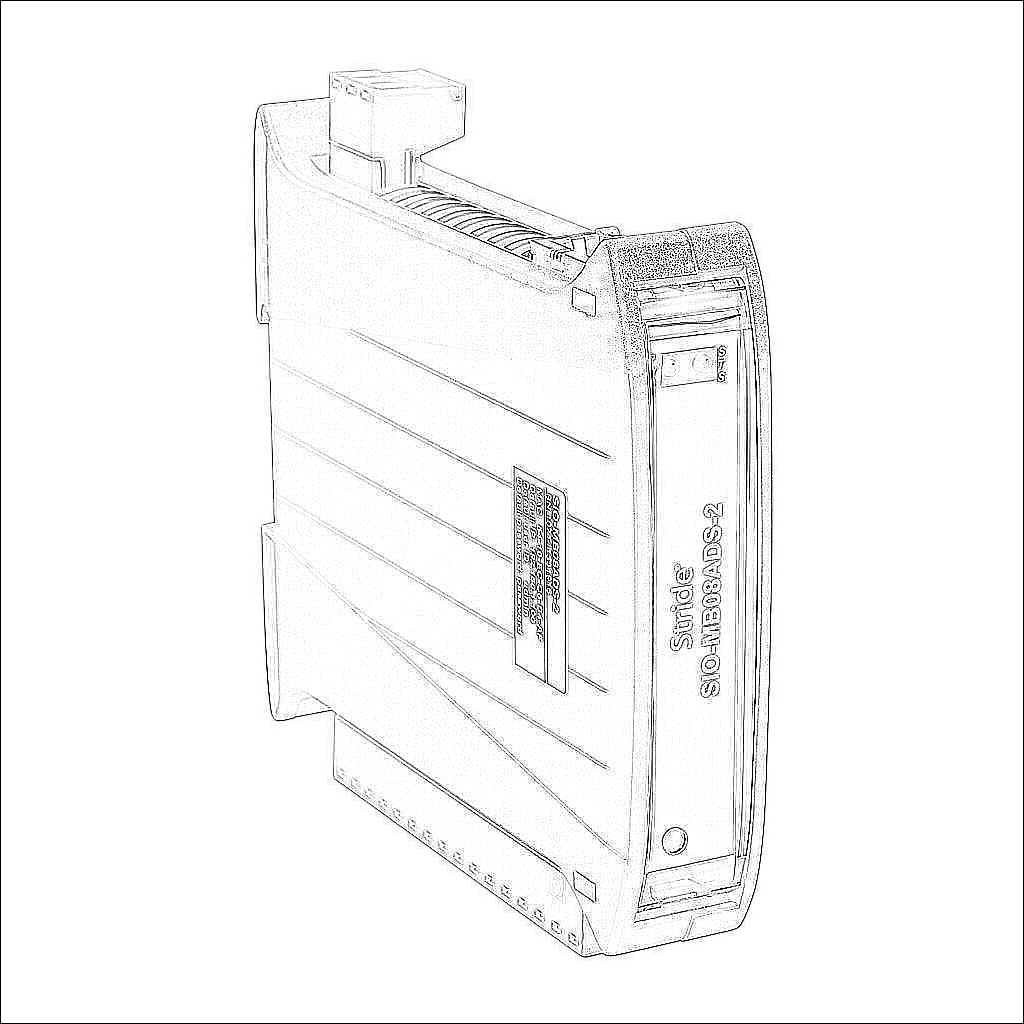

SIO-MB08ADS-2

STRIDE analog input module, 8-channel, voltage, 16-bit, isolated, (1) Ethernet (RJ45) port(s), Modbus TCP, external 14-30 VDC required.

$366.25

		Technical Data
	Brand	STRIDE
	Item	Input module
	I/O Module Type	Analog
	Number Of Input Channels	8
	Input Signal Type(s)	Voltage
	Analog Input Type	Sinking
	Number of Isolated Commons	4
	Isolated Channels	Yes
	Input Resolution	16-bit
	Input Voltage Signal Range	+/- 10 VDC
	Communication Port and Connection Type(s)	(1) Ethernet (RJ45)
	Port Protocol(s)	Modbus TCP Server webserver (non-secure HTTP)
	Port Speed(s)	10/100 Mbps
	External Power Requirement	14-30 VDC
	Programming Software	None, configure via Internet browser

Downloads

Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
