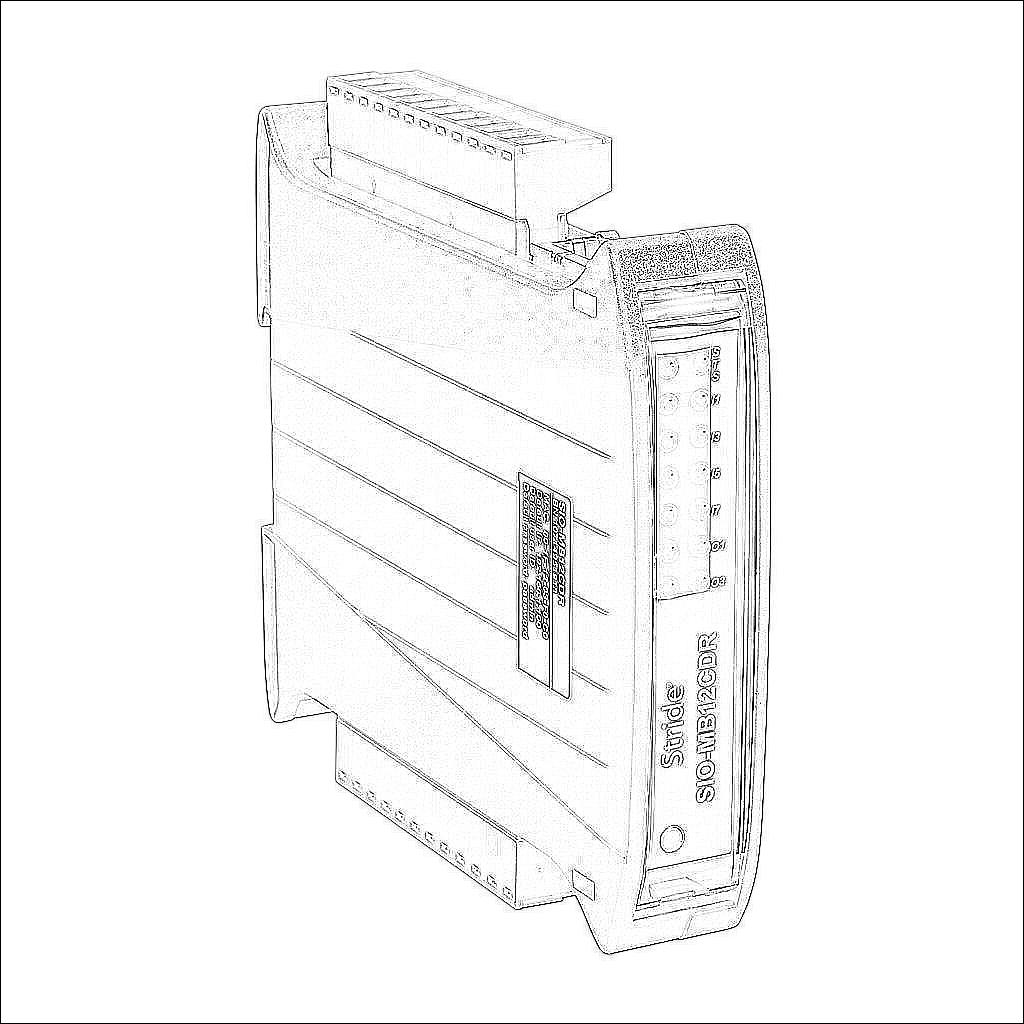

SIO-MB12CDR

SIO-MB12CDR

STRIDE discrete combo module, Input: 8-point, 12-24 VDC, sinking, Output: 4-point, relay, (4) Form C (SPDT) relays, 2A/point, (1) Ethernet (RJ45) port(s), Modbus TCP.

$292.50
/
Technical Data
BrandSTRIDE
ItemCombo module
I/O Module TypeDiscrete
Number of Input Points8
Nominal Input Voltage12-24 VDC
Discrete Input TypeSinking
Number of Non-Isolated Discrete Input Commons2
Number of Points per Discrete Input Common4
Number of Output Points4
Discrete Output TypeRelay
Relay Configuration(4) Form C (SPDT) relays
Number of Isolated Discrete Output Commons4
Number of Points per Discrete Output Common1
Load Current2A/point
Communication Port and Connection Type(s)
  • (1) Ethernet (RJ45)
Port Protocol(s)
  • Modbus TCP Server
  • webserver (non-secure HTTP)
Port Speed(s)
  • 10/100 Mbps
External Power Requirement10-30 VDC
Programming SoftwareNone, configure via Internet browser
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
