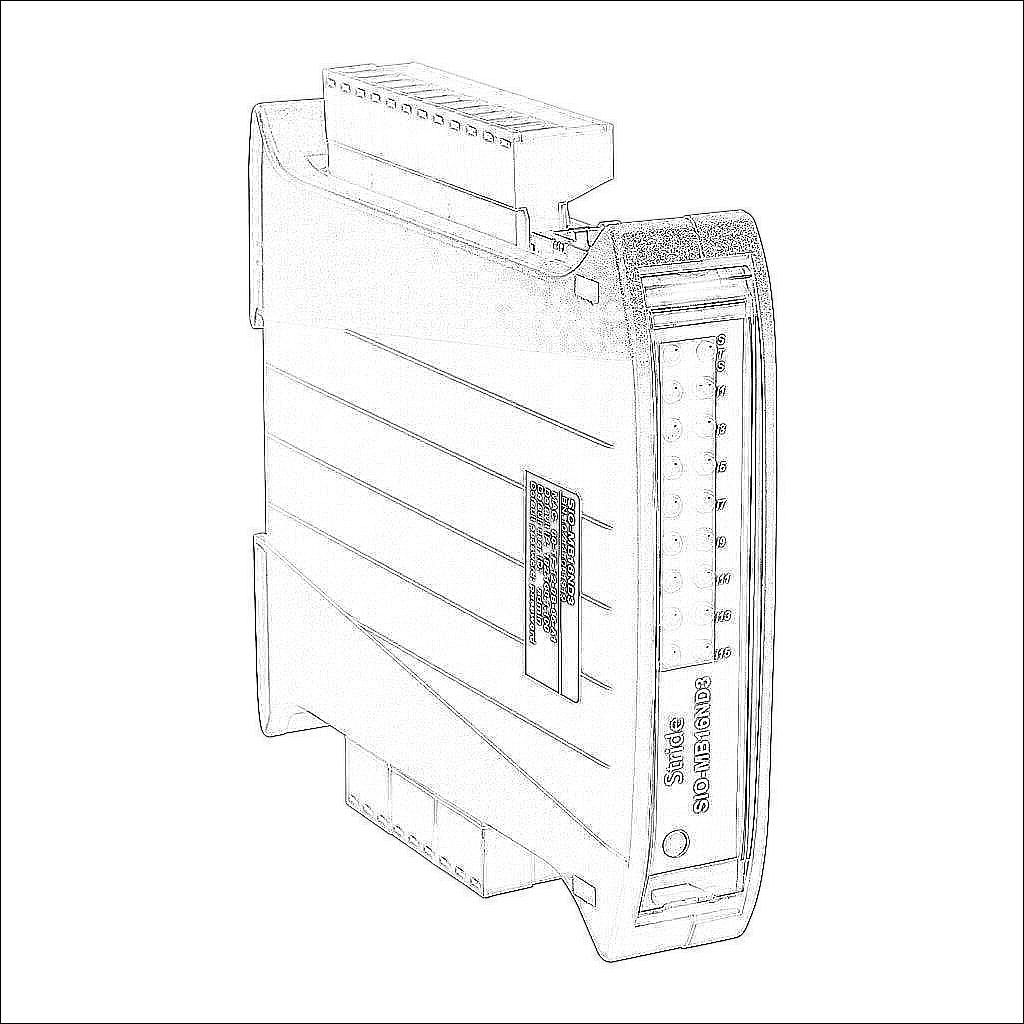

SIO-MB16ND3

SIO-MB16ND3

STRIDE discrete input module, 16-point, 12-24 VDC, sinking/sourcing, 2 isolated common(s), 8 point(s) per common, (1) Ethernet (RJ45) port(s), Modbus TCP.

$322.50
/
Technical Data
BrandSTRIDE
ItemInput module
I/O Module TypeDiscrete
Number of Input Points16
Nominal Input Voltage12-24 VDC
Discrete Input TypeSinking/sourcing
Number of Isolated Input Commons2
Number of Points per Common8
Communication Port and Connection Type(s)
  • (1) Ethernet (RJ45)
Port Protocol(s)
  • Modbus TCP Server
  • webserver (non-secure HTTP)
Port Speed(s)
  • 10/100 Mbps
External Power Requirement10-30 VDC
Programming SoftwareNone, configure via Internet browser
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
