| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

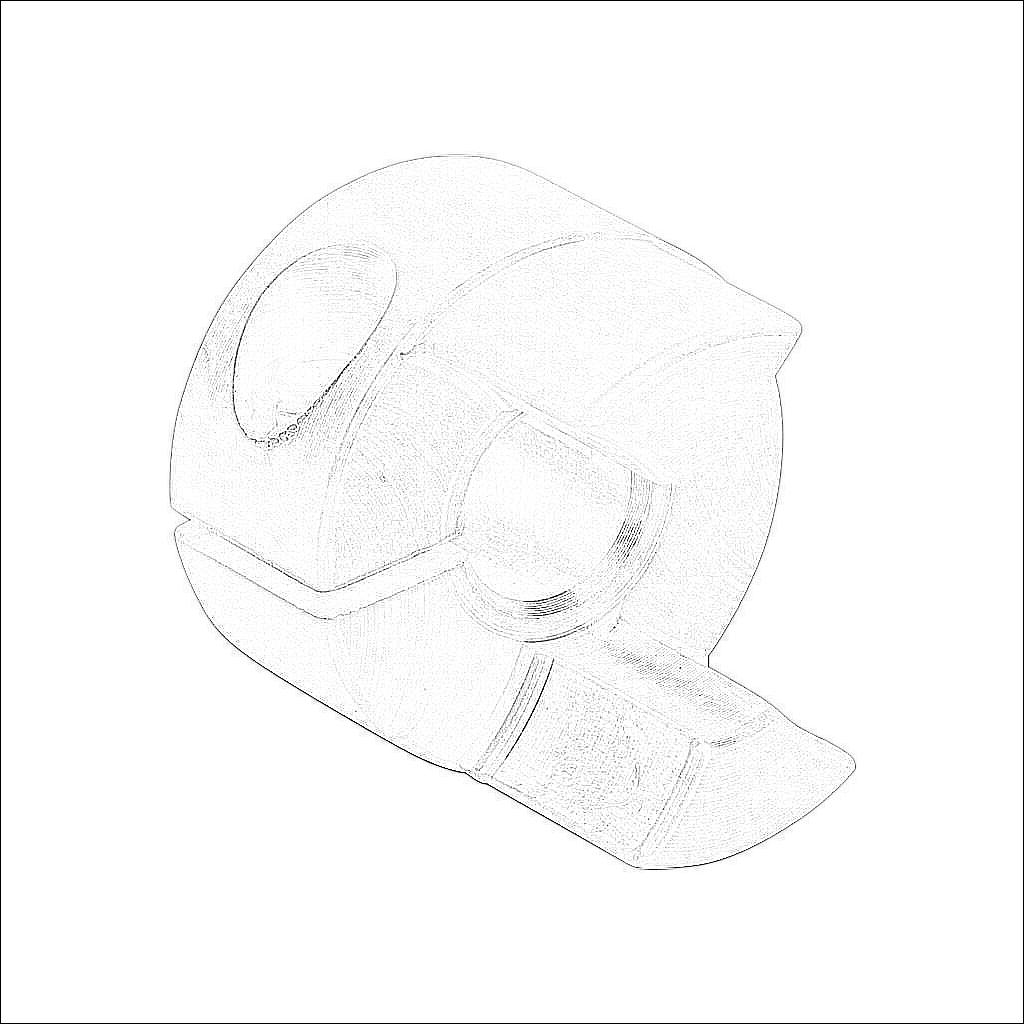

| Item | Drive coupling hub | |
| Coupling Type | Jaw type | |
| Material | Aluminum alloy | |
| Slip Torque | 1 N-m | |
| Maximum Angular Misalignment | 1.0 degrees | |
| Maximum RPM | 22000 | |
| Attachment Style | Clamp | |
| Coupling Size | 14 | |
| Overall Length | 22mm | |
| Bore Diameter | 5mm | |
| Outside Diameter | 14mm | |
| Clamp Screw Fastening Torque | 0.5 N-m | |
| Clamp Screw Size | M2-0.4 x 6mm | |
| Requires | SJC-14 series spiders | |
