| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

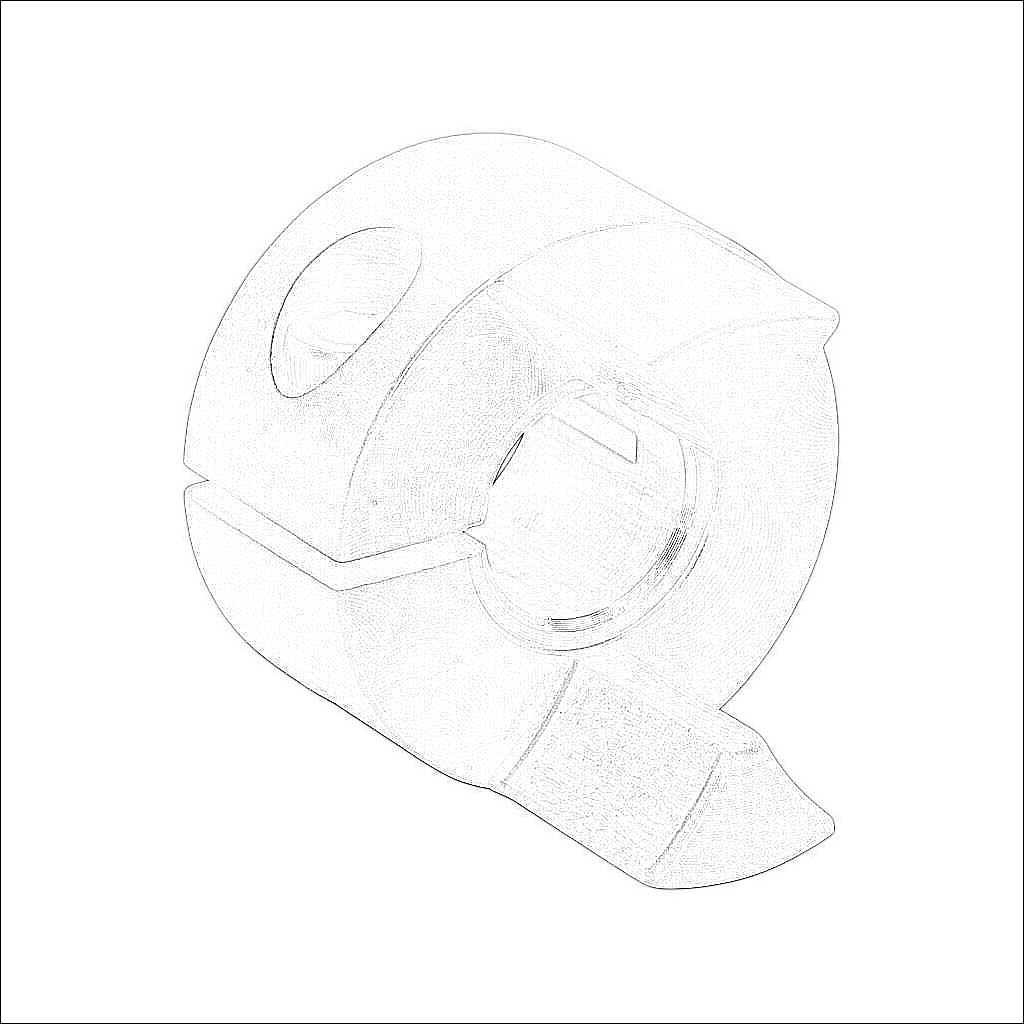

| Item | Drive coupling hub | |
| Coupling Type | Jaw type | |
| Material | Aluminum alloy | |
| Slip Torque | 5 N-m | |
| Maximum Angular Misalignment | 1.0 degrees | |
| Maximum RPM | 15000 | |
| Attachment Style | Clamp | |
| Coupling Size | 20 | |
| Overall Length | 30mm | |
| Bore Diameter | 5/16in | |
| Outside Diameter | 20mm | |
| Clamp Screw Fastening Torque | 1 N-m | |
| Clamp Screw Size | M2.6-0.45 x 10mm | |
| Requires | SJC-20 series spiders | |
