| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

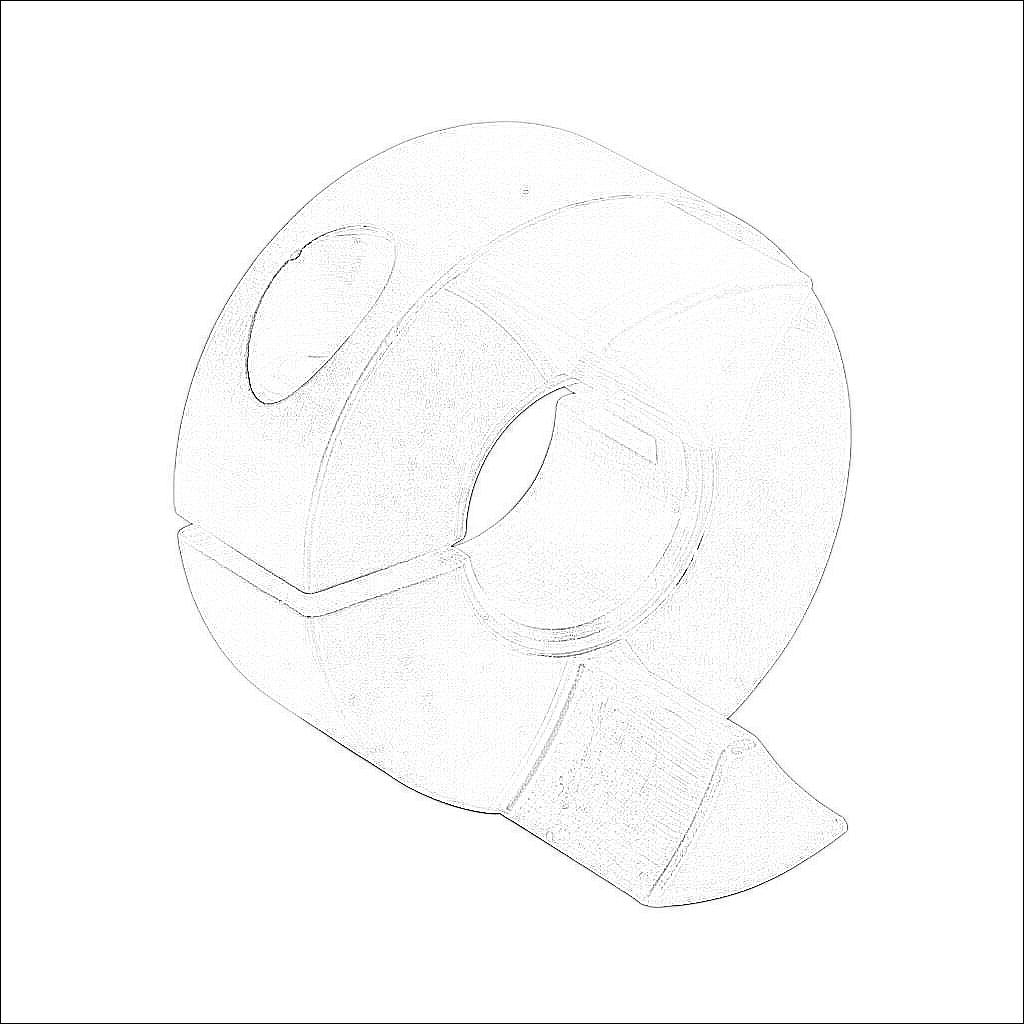

| Item | Drive coupling hub | |
| Coupling Type | Jaw type | |
| Material | Aluminum alloy | |
| Slip Torque | 9 N-m | |
| Maximum Angular Misalignment | 1.0 degrees | |
| Maximum RPM | 13000 | |
| Attachment Style | Clamp | |
| Coupling Size | 25 | |
| Overall Length | 31.3mm | |
| Bore Diameter | 10mm | |
| Outside Diameter | 25mm | |
| Clamp Screw Fastening Torque | 1.7 N-m | |
| Clamp Screw Size | M3-0.5 x 10mm | |
| Requires | SJC-25 series spiders | |
