| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

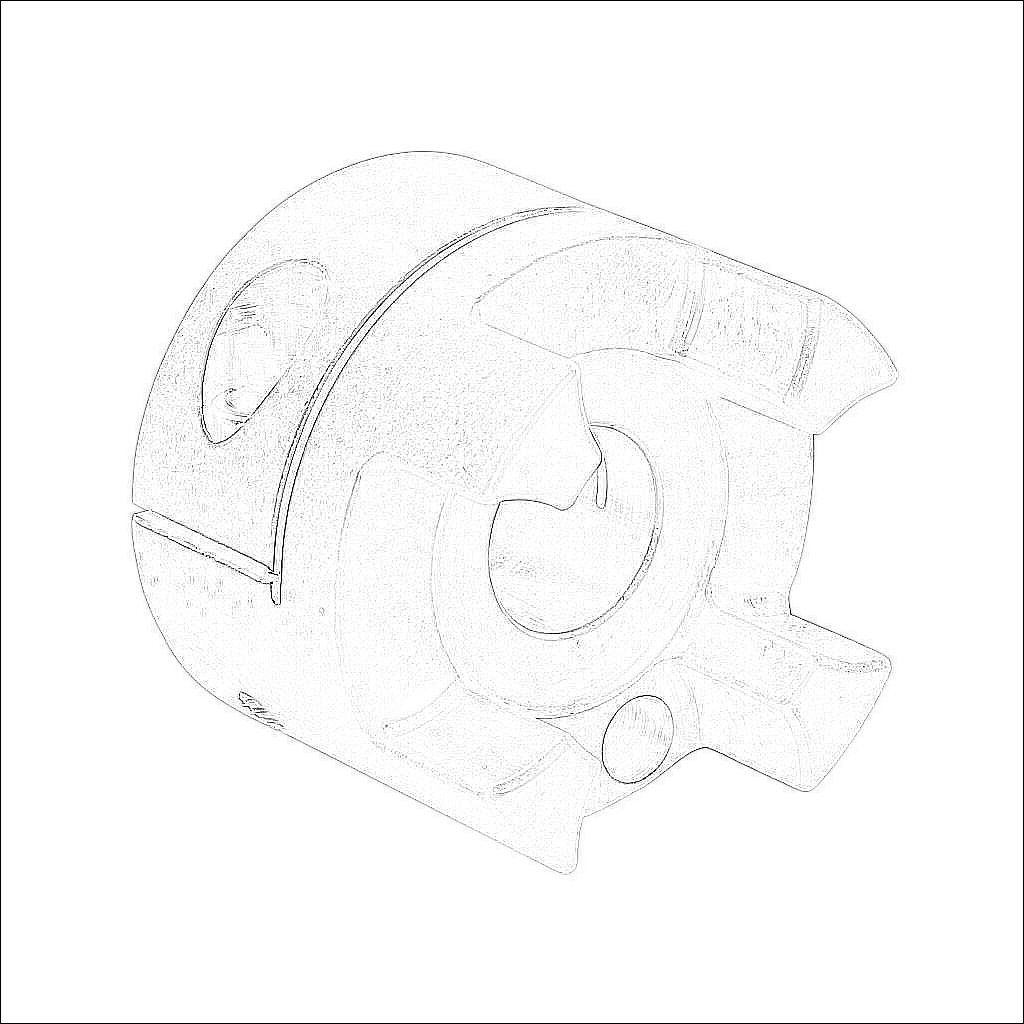

| Item | Drive coupling hub | |
| Coupling Type | Jaw type | |
| Material | Aluminum alloy | |
| Slip Torque | 80 N-m | |
| Maximum Angular Misalignment | 1.0 degrees | |
| Maximum RPM | 6500 | |
| Attachment Style | Clamp | |
| Coupling Size | 55 | |
| Overall Length | 78.3mm | |
| Bore Diameter | 19mm | |
| Outside Diameter | 55mm | |
| Clamp Screw Fastening Torque | 13 N-m | |
| Clamp Screw Size | M6-1.0 x 20mm | |
| Requires | SJC-55 series spiders | |
