| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

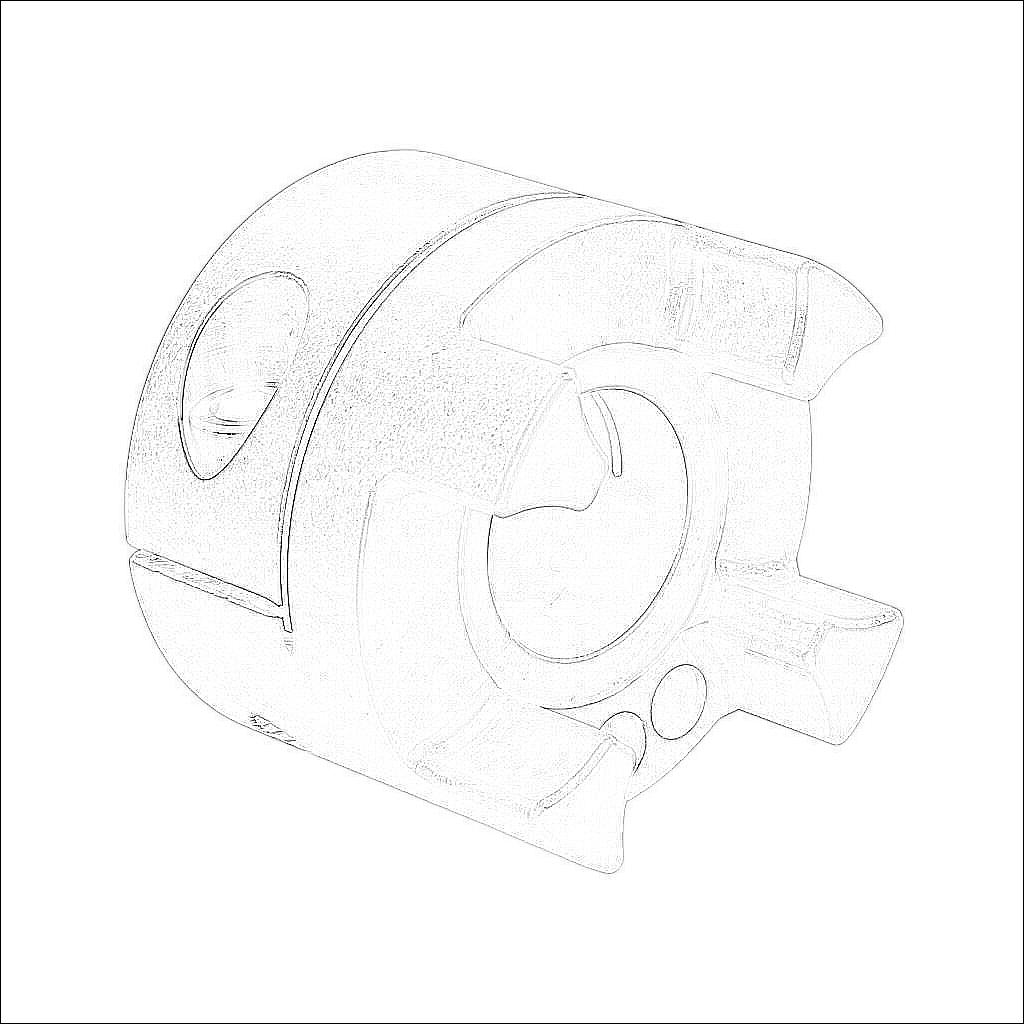

| Item | Drive coupling hub | |
| Coupling Type | Jaw type | |
| Material | Aluminum alloy | |
| Slip Torque | 193 N-m | |
| Maximum Angular Misalignment | 1.0 degrees | |
| Maximum RPM | 4500 | |
| Attachment Style | Clamp | |
| Coupling Size | 80 | |
| Overall Length | 114.2mm | |
| Bore Diameter | 35mm | |
| Outside Diameter | 80mm | |
| Clamp Screw Fastening Torque | 50 N-m | |
| Clamp Screw Size | M10-1.5 x 30mm | |
| Requires | SJC-80 series spiders | |
