| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

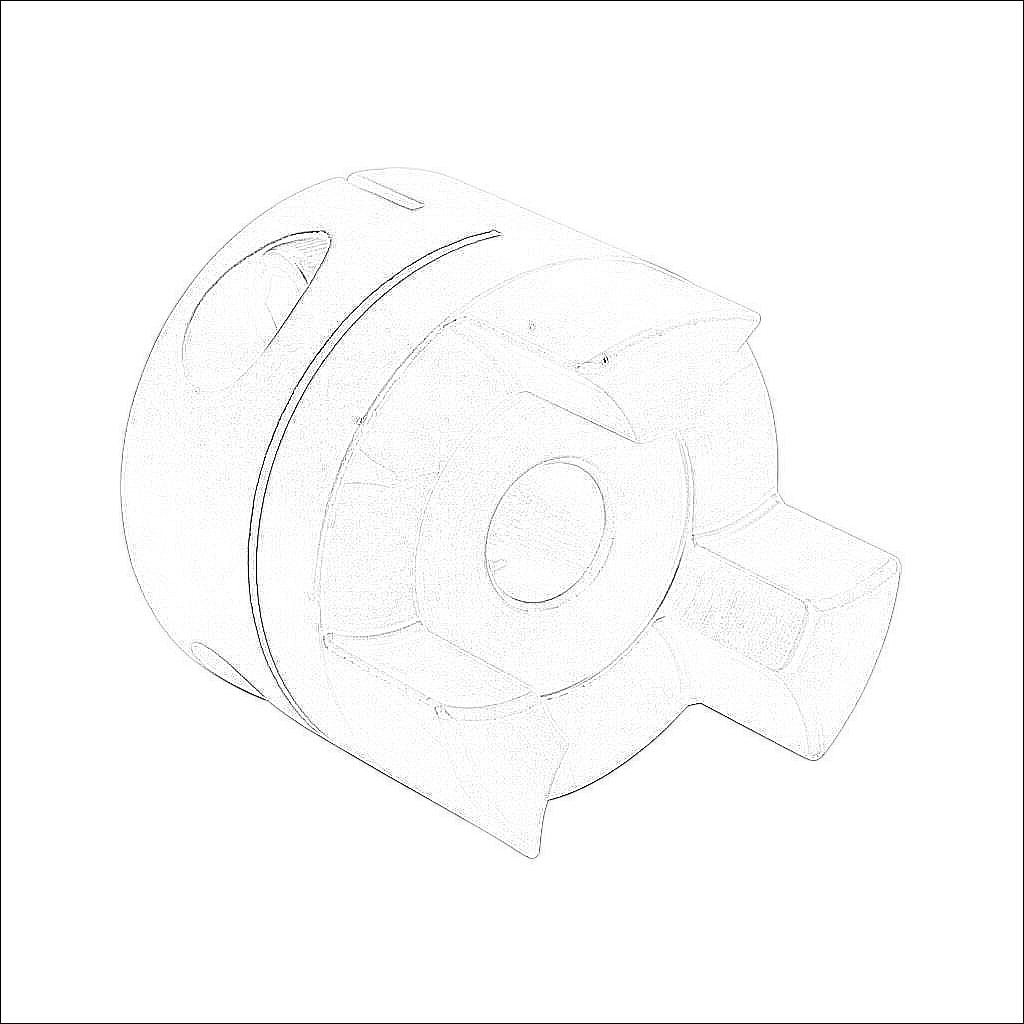

| Item | Drive coupling hub | |
| Coupling Type | Jaw type | |
| Material | Aluminum alloy | |
| Slip Torque | 28 N-m | |
| Maximum Angular Misalignment | 1.0 degrees | |
| Maximum RPM | 8500 | |
| Attachment Style | Clamp | |
| Coupling Size | 40 | |
| Overall Length | 66mm | |
| Bore Diameter | 10mm | |
| Outside Diameter | 40mm | |
| Clamp Screw Fastening Torque | 8 N-m | |
| Clamp Screw Size | M5-0.8 x 16mm | |
| Requires | SJC-40 series spiders | |
