| Technical Data | ||
|---|---|---|
| Brand | SOLO | |

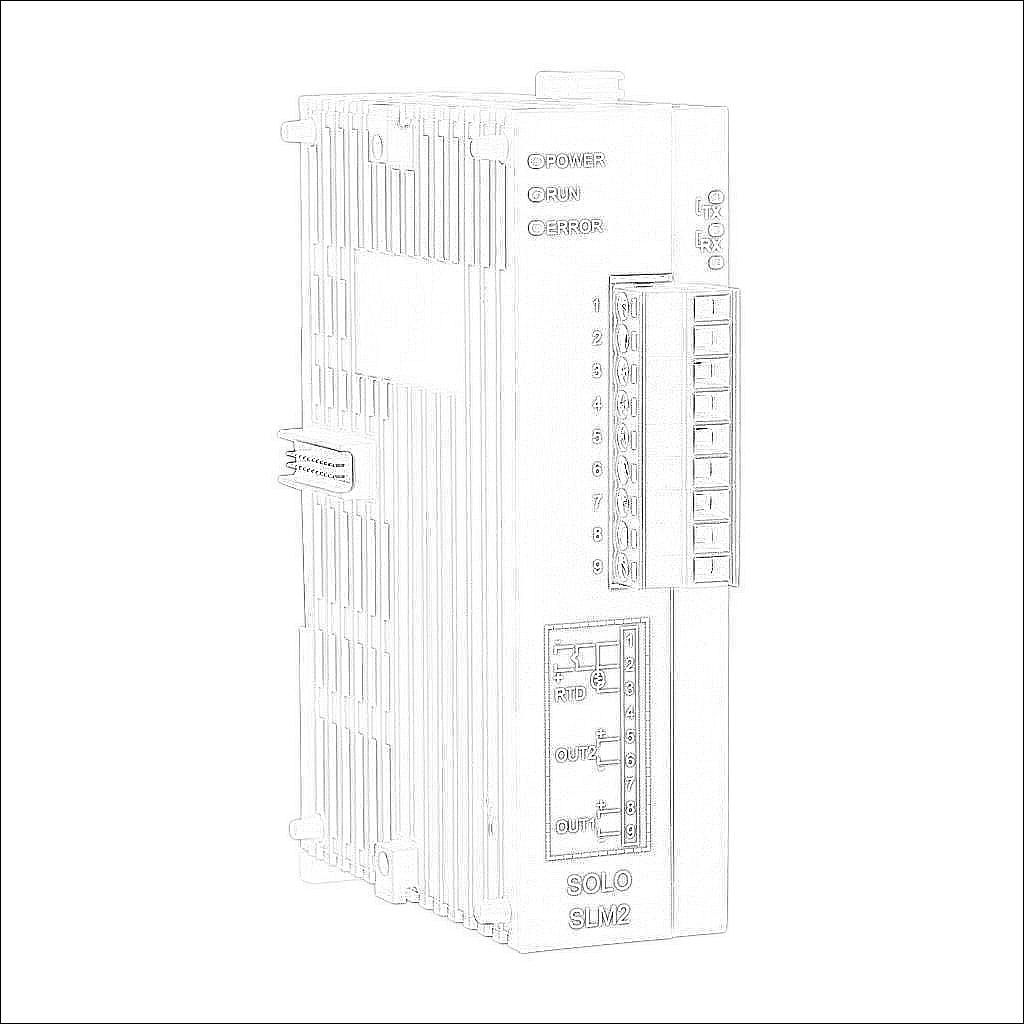

| Item | Modular temperature controller | |
| Module Type | Extension module | |
| Mounting | 35mm DIN rail | |
| Input Current Signal Range | 0-20 mA and 4-20 mA | |
| Input Voltage Signal Range | 0-5 VDC, 0-10 VDC and 0-50 mVDC | |
| Input Thermocouple Signal Type | J, K, T, N, E, R, S, B, L, U, TXK | |
| Input RTD Signal Types | Pt100 and JPt100 | |
| Output | (2) 3A SPST relays | |
| Operating Voltage | 24 VDC | |
| Control Mode | PID, ON/OFF, ramp/soak or manual | |
| Control Function | Single loop, heat only, cool only or heat/cool | |
| Communication | RS-485 | |
| Requires | SOLO modular temperature controller main units | |
