| Technical Data | ||
|---|---|---|
| Brand | Datalogic | |

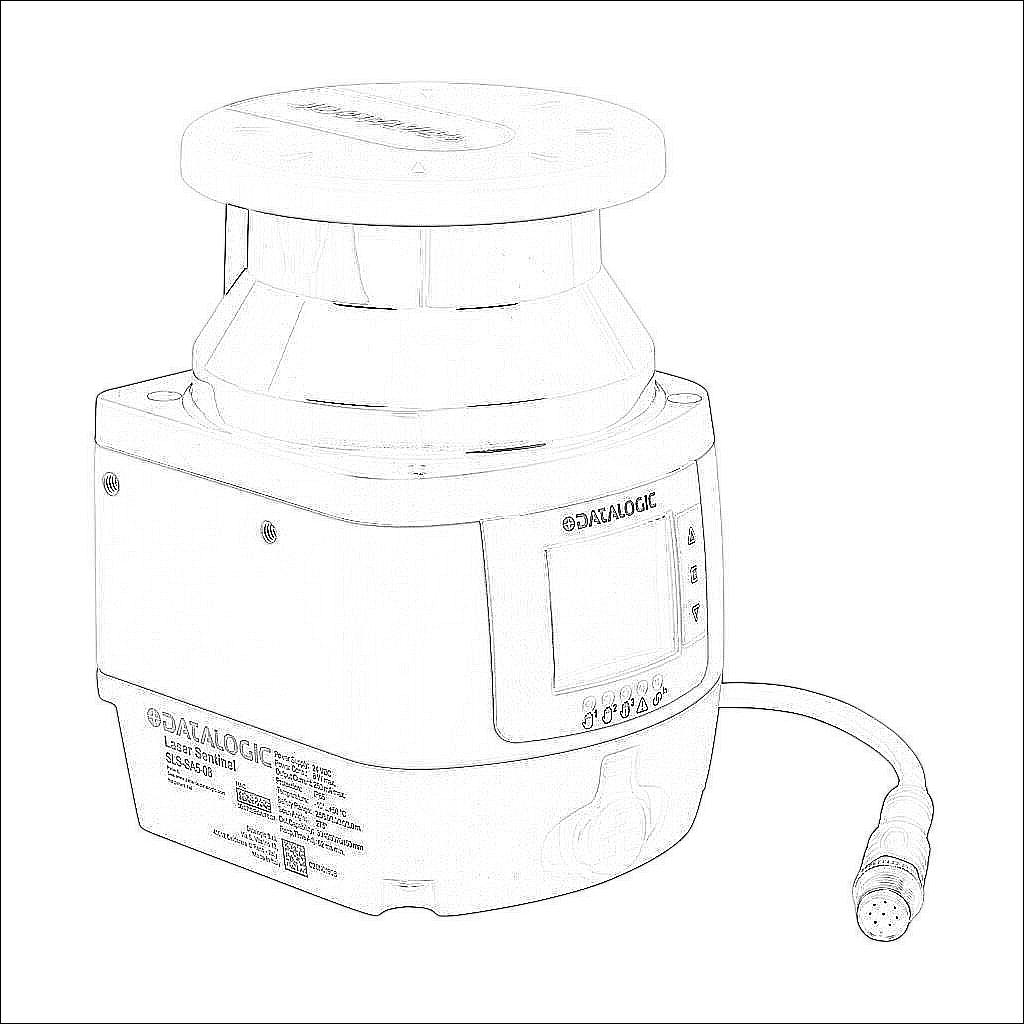

| Item | Safety laser scanner | |
| Series | Sentinel | |
| Function | Area protection | |
| Operating Angle | 275 degrees | |
| Angular Resolution | 0.1 degree | |
| Operating Distance | 0.05-5.5m | |
| Operating Zones | (1) safety zone, (2) warning zones | |
| Configurable | Yes | |
| Input Voltage | 24 VDC | |
| Switching Output | (2) OSSD outputs | |
| Safety Category | Type 3 | |
| Scanner Features | Muting and restart capability | |
| IP Rating | IP65 | |
| Connection | (1) 4-pin and (1) 8-pin M12 quick-disconnect | |
| Additional Information | Purchase cable separately | |
