SLU-70-1

Name: SLU-70-1
Brand: Penn-Union
SKU: SLU-70-1
Price: 3.13 USD
Availability: InStock

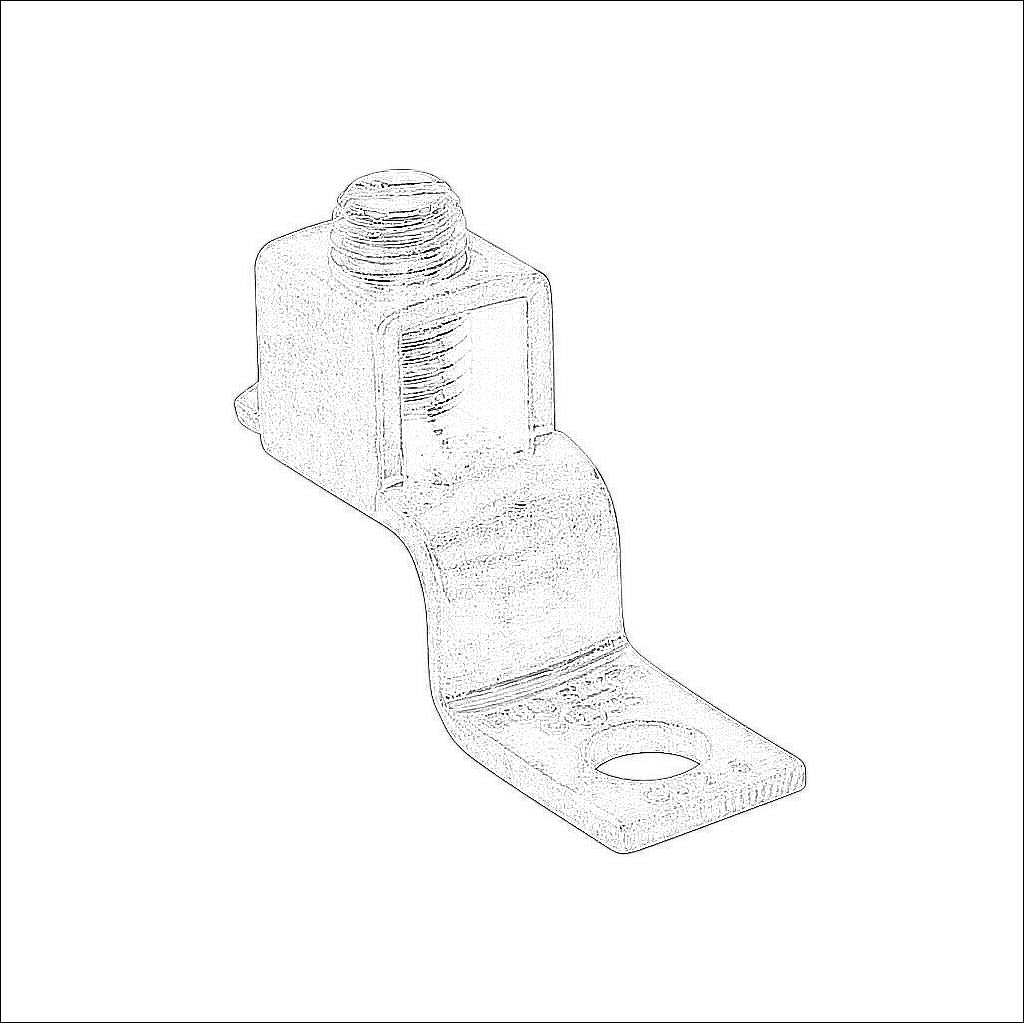

Penn-Union mechanical lug, offset tongue, copper-electrolytic, 70-90A, 1 openings, (1) 8 AWG solid-2 AWG stranded copper.

$3.13

/

		Technical Data
	Brand	Penn-Union
	Item	Mechanical lug
	Lug Type	Offset tongue
	Material	Copper-electrolytic
	Amperage Rating	70-90A
	Number Of Openings	1
	Tightening Torque	8 AWG 40 in-lb copper, 6-4 AWG 45 in-lb copper, 3 AWG 50 in-lb copper and 2 AWG 50 in-lb copper
	Conductor Bolt Style	Slotted set screw
	Conductor Material	Copper
	Conductor Size	(1) 8 AWG solid-2 AWG stranded copper
	Mounting Holes	1 hole
	Mounting Bolt Size	1/4in
