| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

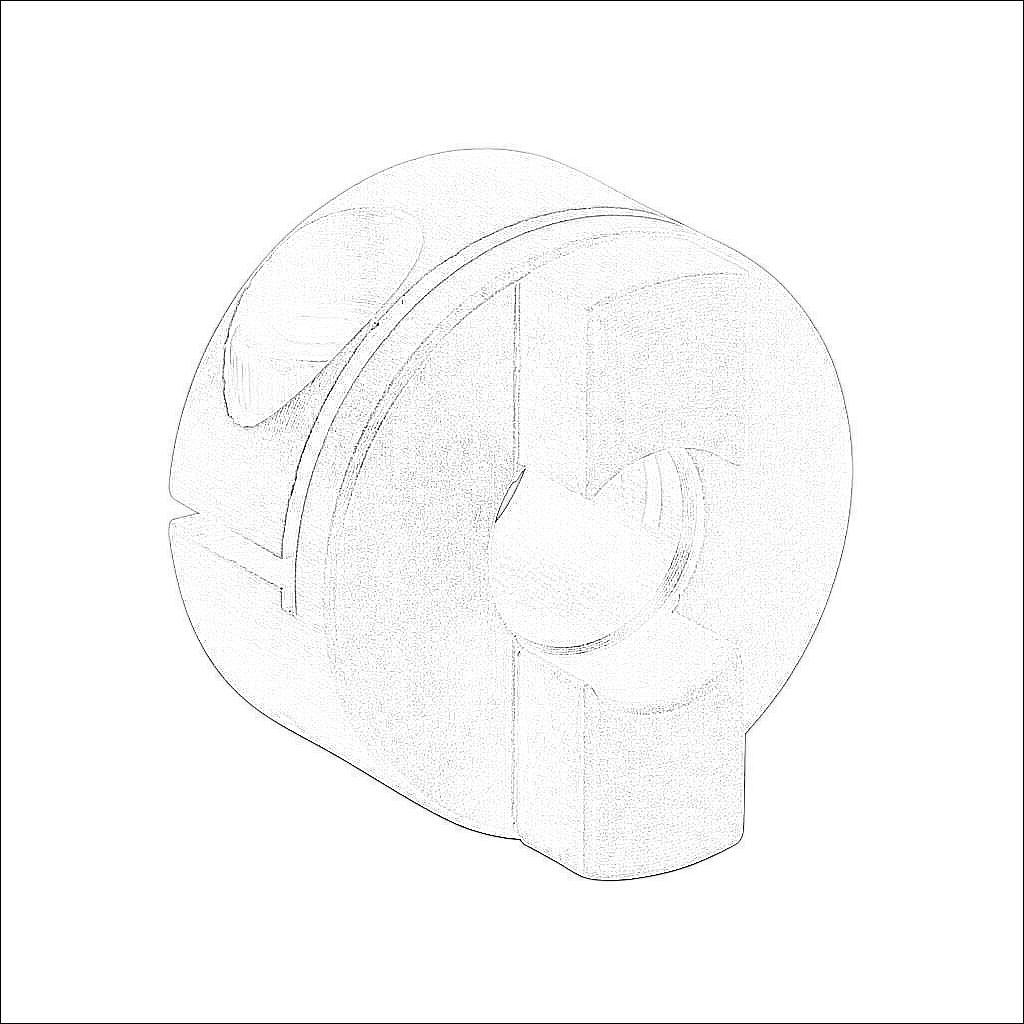

| Item | Drive coupling hub | |
| Coupling Type | Oldham | |
| Material | Aluminum alloy | |
| Rated Torque | 1 N-m | |
| Maximum Torque | 2 N-m | |
| Maximum Angular Misalignment | 1.5 degrees | |
| Maximum Parallel Misalignment | 1mm | |
| Maximum RPM | 13000 | |
| Attachment Style | Clamp | |
| Coupling Size | 16 | |
| Overall Length | 23.9mm | |
| Bore Diameter | 6mm | |
| Outside Diameter | 16mm | |
| Clamp Screw Fastening Torque | 1 N-m | |
| Clamp Screw Size | M2.6-0.45 x 8mm | |
| Requires | SOH-16-DISC torque disc | |
