| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

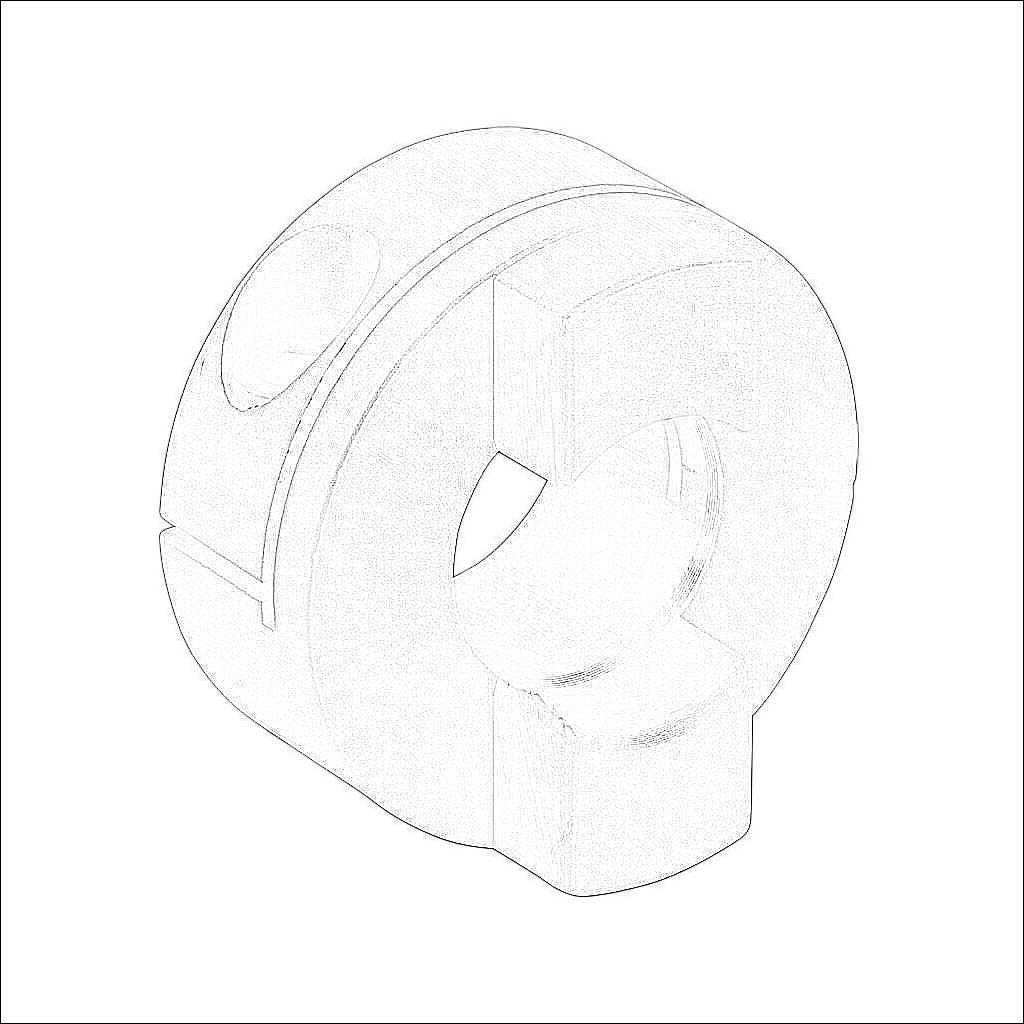

| Item | Drive coupling hub | |
| Coupling Type | Oldham | |
| Material | Aluminum alloy | |
| Rated Torque | 2.5 N-m | |
| Maximum Torque | 5 N-m | |
| Maximum Angular Misalignment | 1.5 degrees | |
| Maximum Parallel Misalignment | 2mm | |
| Maximum RPM | 10000 | |
| Attachment Style | Clamp | |
| Coupling Size | 25 | |
| Overall Length | 32mm | |
| Bore Diameter | 12mm | |
| Outside Diameter | 25.5mm | |
| Clamp Screw Fastening Torque | 1.7 N-m | |
| Clamp Screw Size | M3-0.5 x 10mm | |
| Requires | SOH-25-DISC torque disc | |
