| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

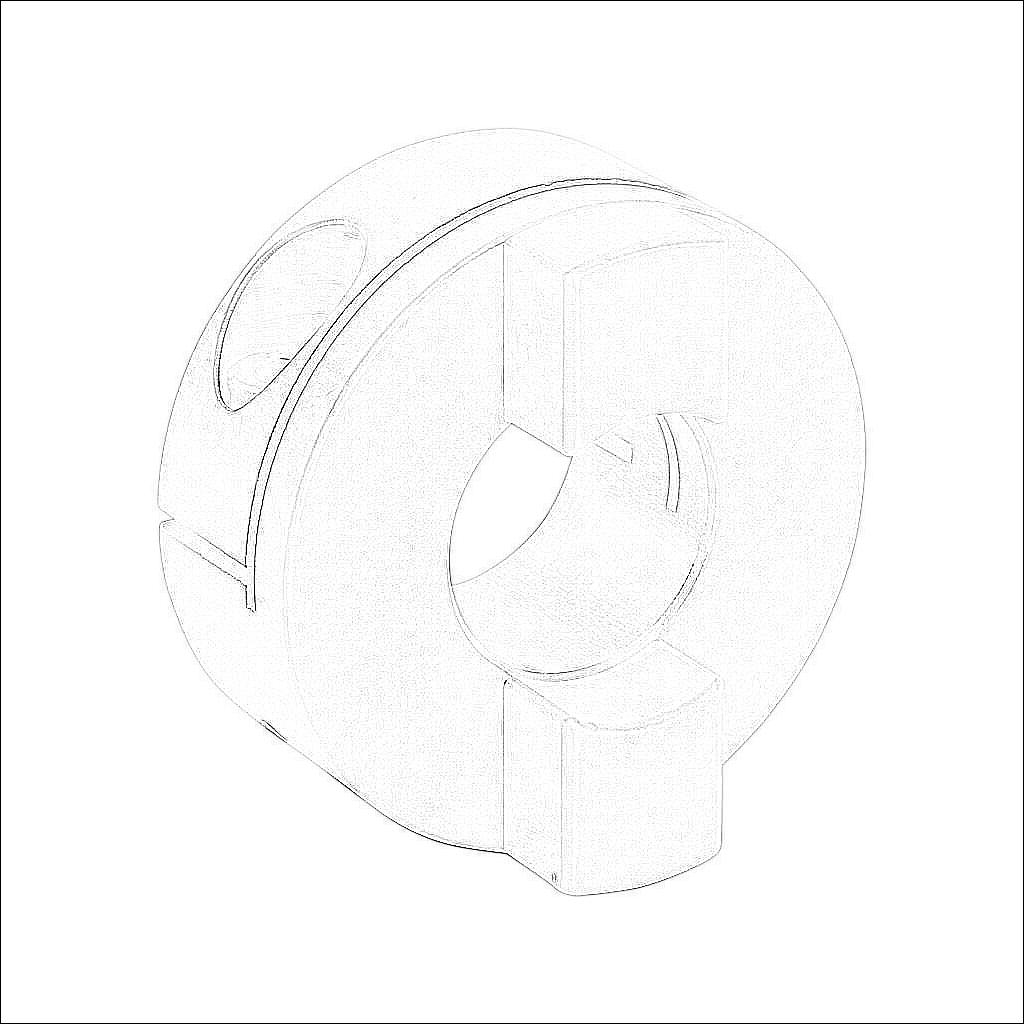

| Item | Drive coupling hub | |
| Coupling Type | Oldham | |
| Material | Aluminum alloy | |
| Rated Torque | 12.5 N-m | |
| Maximum Torque | 25 N-m | |
| Maximum Angular Misalignment | 1.5 degrees | |
| Maximum Parallel Misalignment | 3mm | |
| Maximum RPM | 8000 | |
| Attachment Style | Clamp | |
| Coupling Size | 43 | |
| Overall Length | 52mm | |
| Bore Diameter | 19mm | |
| Outside Diameter | 43mm | |
| Clamp Screw Fastening Torque | 8 N-m | |
| Clamp Screw Size | M5-0.8 x 16mm | |
| Requires | SOH-43-DISC torque disc | |
