| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

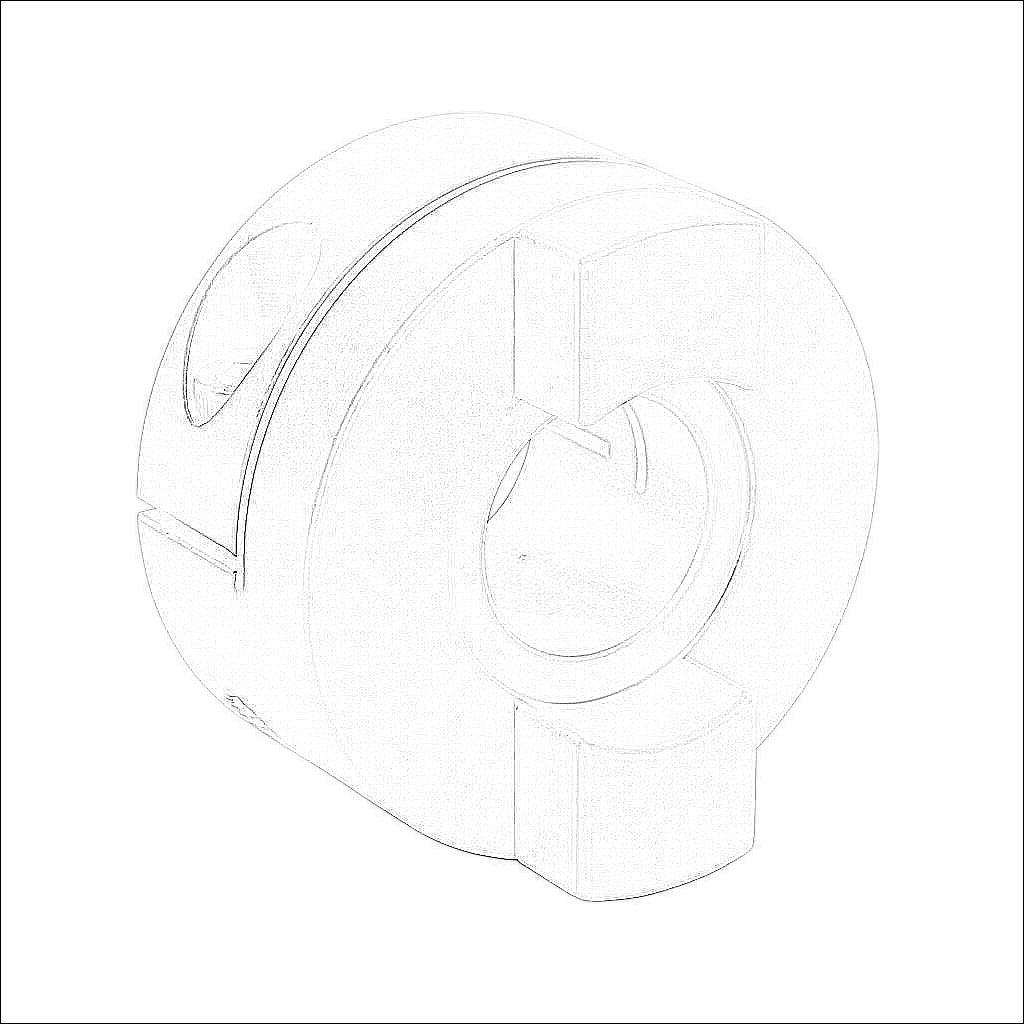

| Item | Drive coupling hub | |
| Coupling Type | Oldham | |
| Material | Aluminum alloy | |
| Rated Torque | 34 N-m | |
| Maximum Torque | 68 N-m | |
| Maximum Angular Misalignment | 1.5 degrees | |
| Maximum Parallel Misalignment | 3.5mm | |
| Maximum RPM | 6000 | |
| Attachment Style | Clamp | |
| Coupling Size | 57 | |
| Overall Length | 76.2mm | |
| Bore Diameter | 22mm | |
| Outside Diameter | 57mm | |
| Clamp Screw Fastening Torque | 13 N-m | |
| Clamp Screw Size | M6-1.0 x 20mm | |
| Requires | SOH-57-DISC torque disc | |
