| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

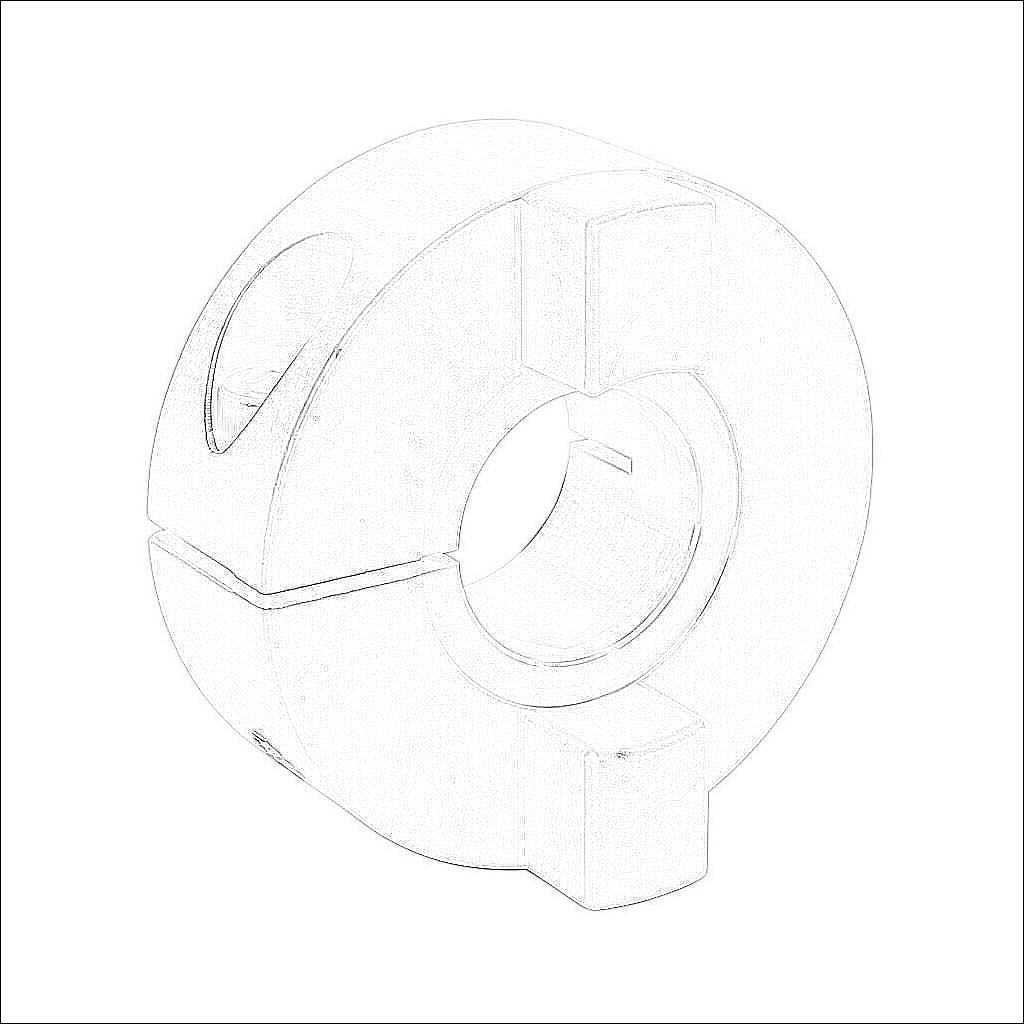

| Item | Drive coupling hub | |
| Coupling Type | Oldham | |
| Material | Aluminum alloy | |
| Rated Torque | 60 N-m | |
| Maximum Torque | 120 N-m | |
| Maximum Angular Misalignment | 1.5 degrees | |
| Maximum Parallel Misalignment | 3.5mm | |
| Maximum RPM | 4500 | |
| Attachment Style | Clamp | |
| Coupling Size | 70 | |
| Overall Length | 75.5mm | |
| Bore Diameter | 1-1/8in | |
| Outside Diameter | 73mm | |
| Clamp Screw Fastening Torque | 30 N-m | |
| Clamp Screw Size | M8-1.25 x 30mm | |
| Requires | SOH-70-DISC torque disc | |
