| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

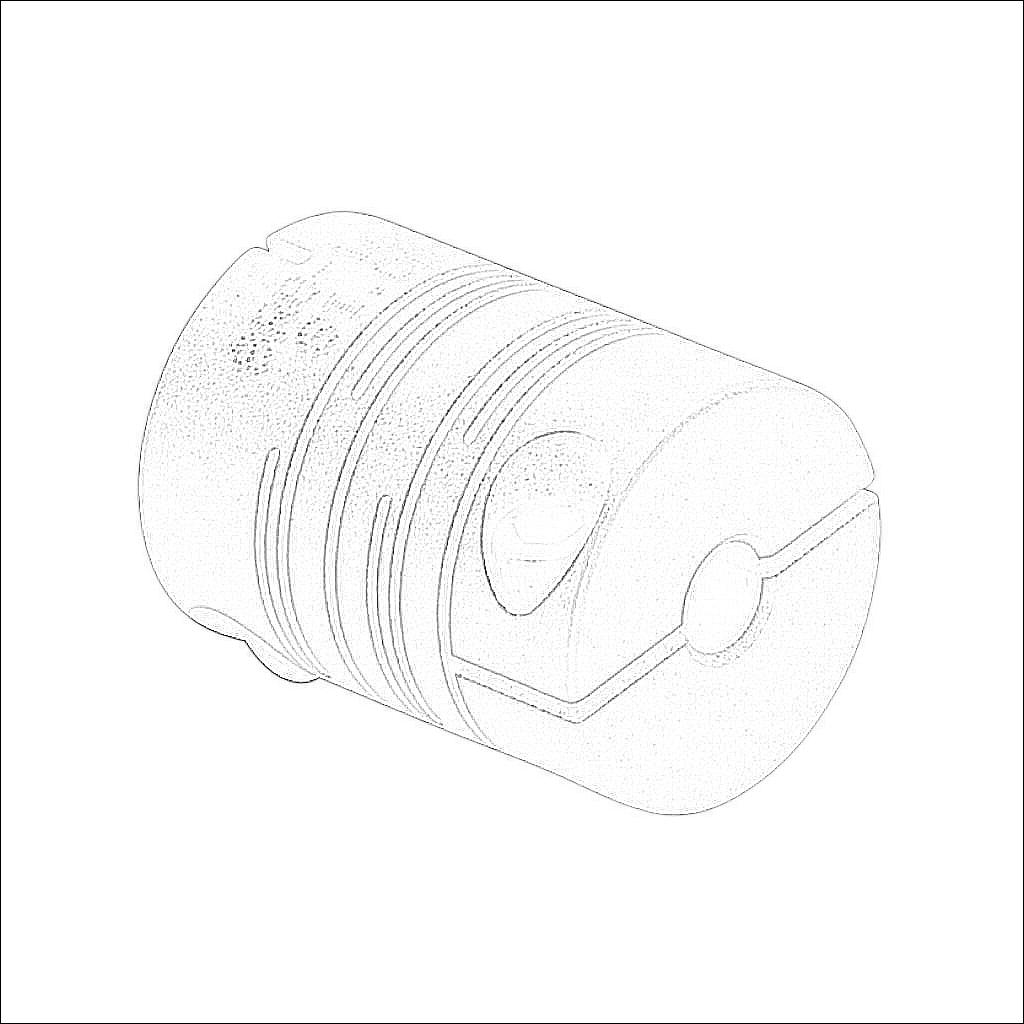

| Item | Drive coupling | |
| Coupling Type | Servo-beam | |
| Material | 7075-T6 aluminum alloy | |
| Rated Torque | 0.4 N-m | |
| Maximum Torque | 0.8 N-m | |
| Maximum Angular Misalignment | 2.5 degrees | |
| Maximum Parallel Misalignment | 0.15mm | |
| Maximum RPM | 27000 | |
| Attachment Style | Clamp | |
| Coupling Size | 16 | |
| Overall Length | 21.5mm | |
| Bore Diameter | 4mm | |
| Bore Diameter 2 | 4mm | |
| Outside Diameter | 16mm | |
| Clamp Screw Fastening Torque | 1 N-m | |
| Clamp Screw Size | M2.6-0.45 x 8mm | |
