| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

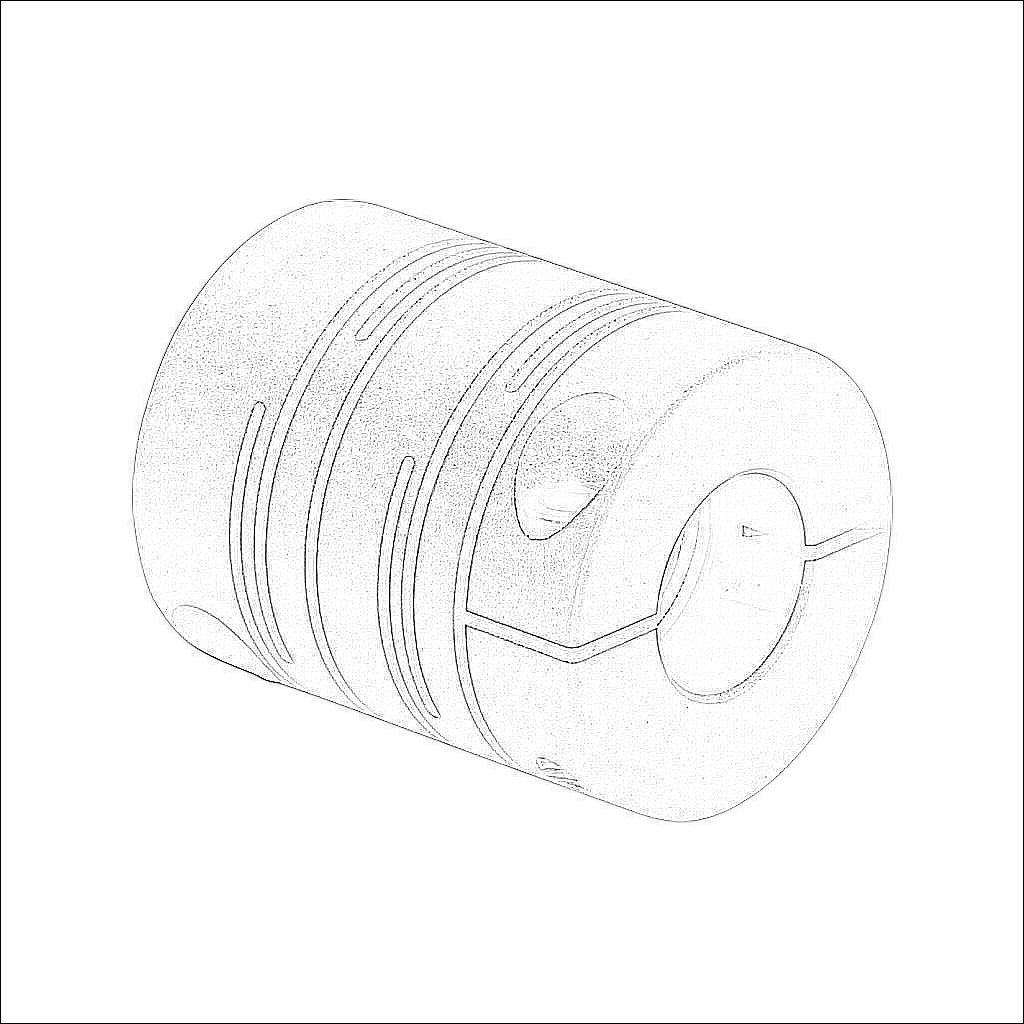

| Item | Drive coupling | |
| Coupling Type | Servo-beam | |
| Material | 7075-T6 aluminum alloy | |
| Rated Torque | 2 N-m | |
| Maximum Torque | 4 N-m | |
| Maximum Angular Misalignment | 2.5 degrees | |
| Maximum Parallel Misalignment | 0.2mm | |
| Maximum RPM | 17000 | |
| Attachment Style | Clamp | |
| Coupling Size | 26 | |
| Overall Length | 31.5mm | |
| Bore Diameter | 12mm | |
| Bore Diameter 2 | 12mm | |
| Outside Diameter | 26.2mm | |
| Clamp Screw Fastening Torque | 1.7 N-m | |
| Clamp Screw Size | M3-0.5 x 10mm | |
