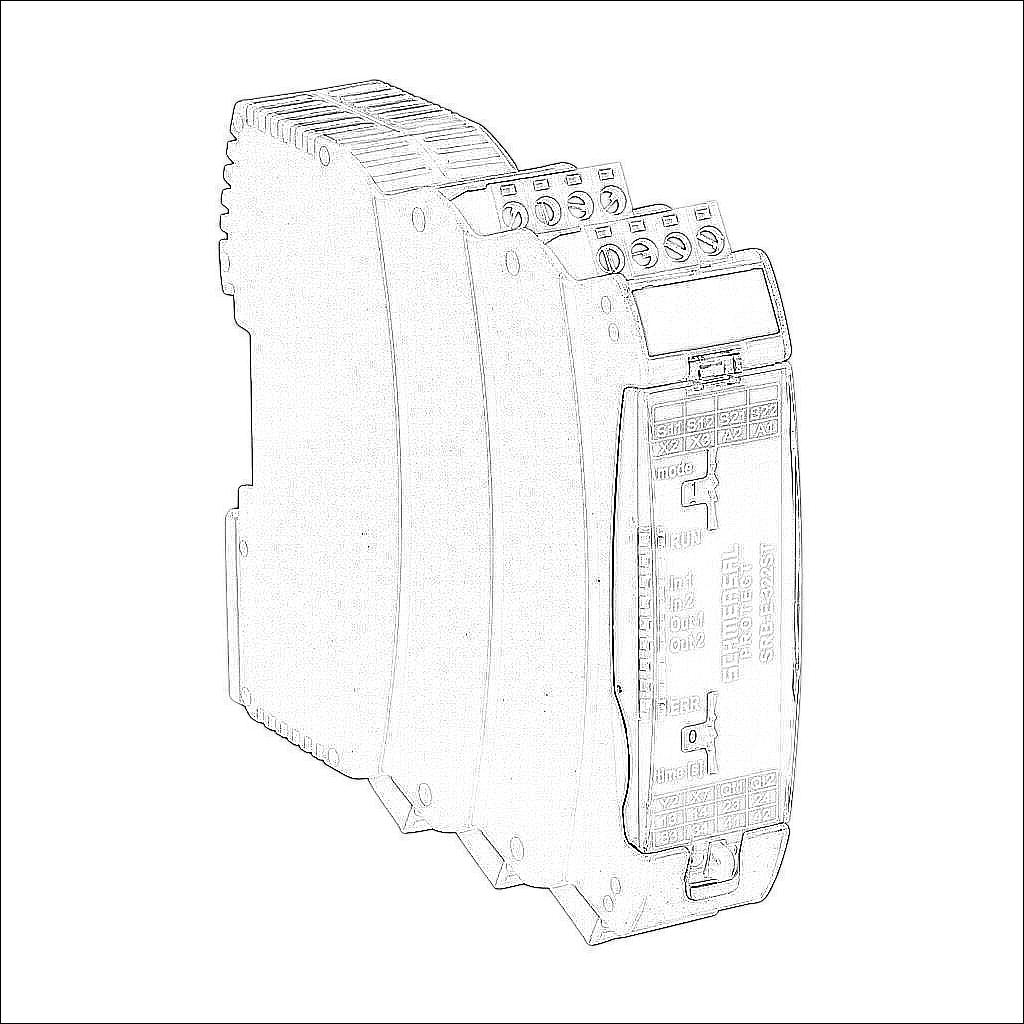

SRB-E-322ST

SRB-E-322ST

Schmersal safety relay, configurable, release delay, 0 to 30 seconds, 2-channel, 24 VDC, 10 configurations, (3) delayed N.O. and (2) OSSD safety output(s), (1) N.C and (1) status monitoring output(s), pluggable screw terminals.

$488.75
/
Technical Data
BrandSchmersal
ItemSafety relay
Relay TypeConfigurable
Delay TypeRelease delay
Monitoring Circuit0 to 30 seconds
Number Of Channels2
Control Voltage24 VDC
Restart TypeManual or automatic restart
Number Of Configurations10 configurations
Configuration Types
  • cross-wire monitoring = yes/no
  • input sensor = NC/NC or NC/NO
  • synchronous monitoring = yes/no
Safety Input Type(1) pair digital
Safety Output Type(3) delayed N.O. and (2) OSSD
Monitoring Output Type(1) N.C and (1) status
ConnectionPluggable screw terminals
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
