| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

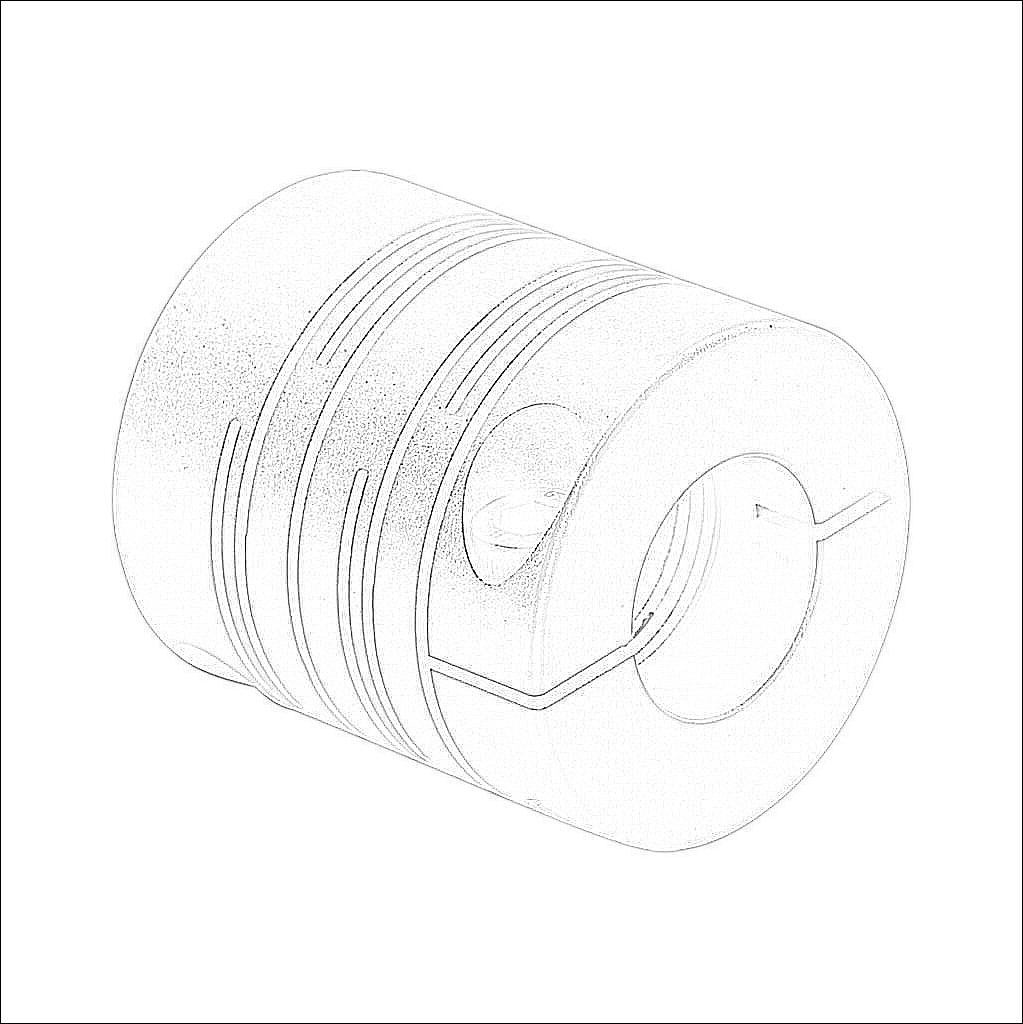

| Item | Drive coupling | |
| Coupling Type | Servo-beam | |
| Material | 7075-T6 aluminum alloy | |
| Rated Torque | 7 N-m | |
| Maximum Torque | 14 N-m | |
| Maximum Angular Misalignment | 2.5 degrees | |
| Maximum Parallel Misalignment | 0.25mm | |
| Maximum RPM | 10000 | |
| Attachment Style | Clamp | |
| Coupling Size | 39 | |
| Overall Length | 43mm | |
| Bore Diameter | 14mm | |
| Bore Diameter 2 | 19mm | |
| Outside Diameter | 39mm | |
| Clamp Screw Fastening Torque | 8 N-m | |
| Clamp Screw Size | M5-0.8 x 16mm | |
