| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

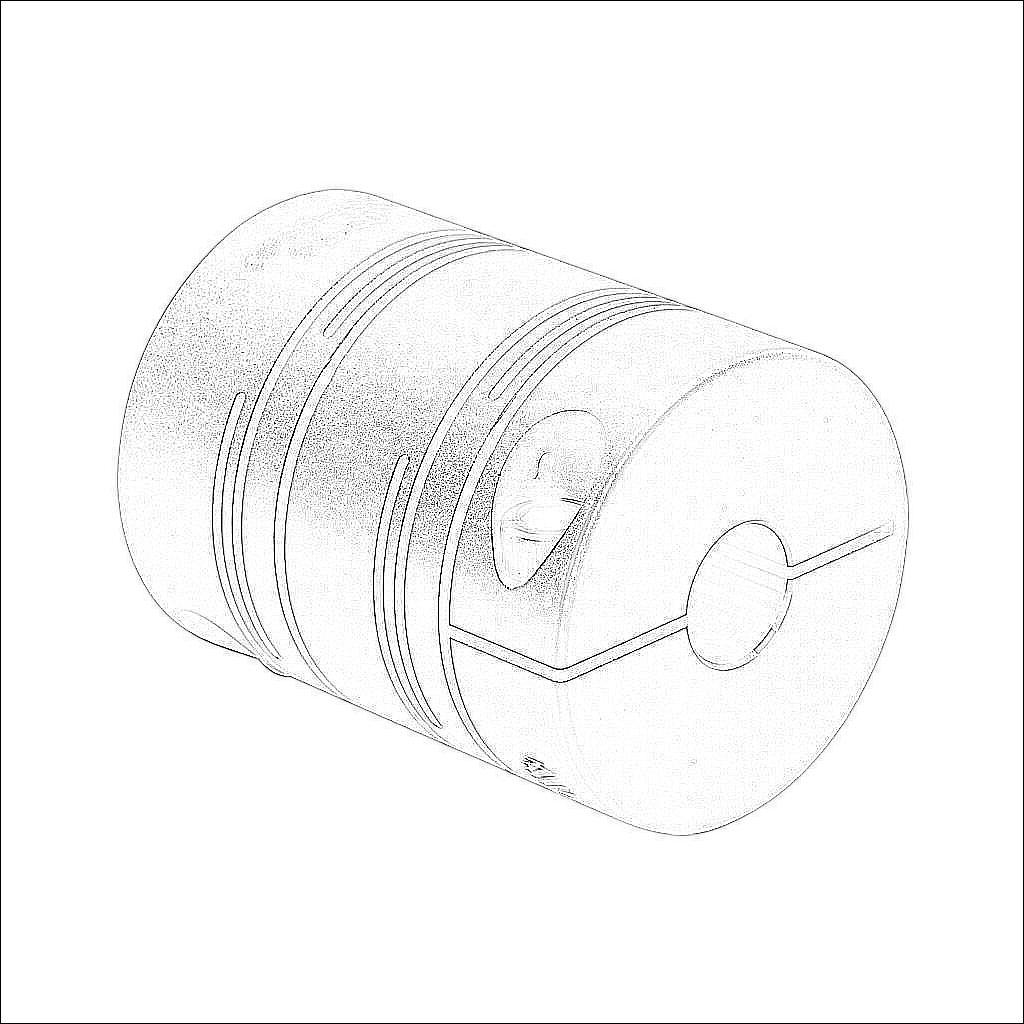

| Item | Drive coupling | |
| Coupling Type | Servo-beam | |
| Material | 7075-T6 aluminum alloy | |
| Rated Torque | 15 N-m | |
| Maximum Torque | 30 N-m | |
| Slip Torque | 21 N-m | |
| Maximum Angular Misalignment | 2.5 degrees | |
| Maximum Parallel Misalignment | 0.25mm | |
| Maximum RPM | 10000 | |
| Attachment Style | Clamp | |
| Coupling Size | 49 | |
| Overall Length | 63.5mm | |
| Bore Diameter | 12mm | |
| Bore Diameter 2 | 14mm | |
| Outside Diameter | 49mm | |
| Clamp Screw Fastening Torque | 13 N-m | |
| Clamp Screw Size | M6-1.0 x 20mm | |
