| Technical Data | ||
|---|---|---|
| Brand | Metrol | |

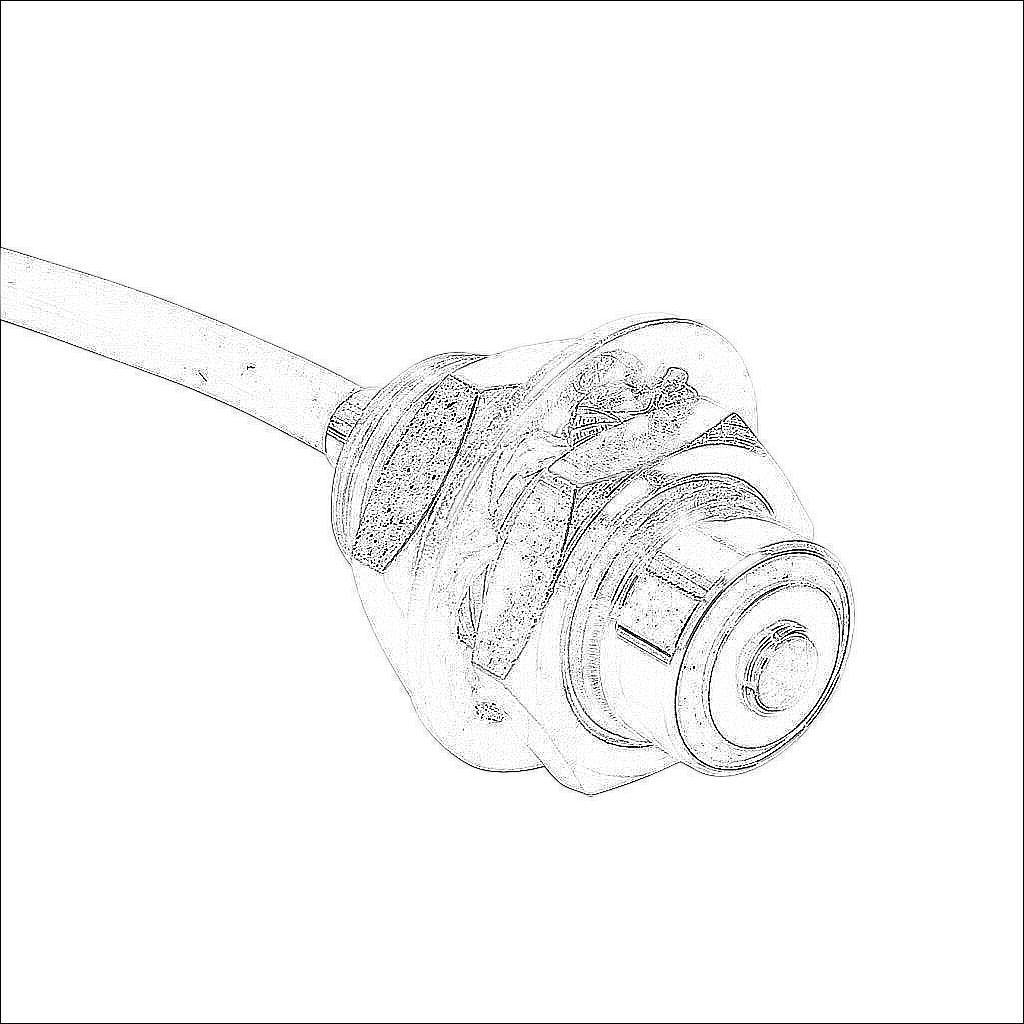

| Item | Limit switch | |
| Application | High temperature | |
| Switch Type | Stopper | |
| Diameter | 10mm | |
| Barrel Type | Threaded | |
| Length | 19.5mm | |
| Head Type | 2.5mm radius | |
| Actuator Type | 3mm plunger with boot | |
| Contact Force | 1N | |
| Contact Type | (1) N.O. | |
| Cable Length | 6.5ft/2m | |
| Connection | Pigtail | |
| Conductor Size | 24 AWG | |
| Stroke | 0.3mm | |
| Repeatability | 0.01mm | |
| Impact Resistance | 0.2 joules | |
| Withstand Load | 3000N | |
| Thread Pitch | 0.75mm | |
| Material | Stainless steel | |
| Head Material | Stainless steel | |
| IP Rating | IP67 | |
| Operating Temperature | 0 to 80 deg C | |
| Includes | Mounting hardware | |
