| Technical Data | ||
|---|---|---|
| Brand | SureStep | |

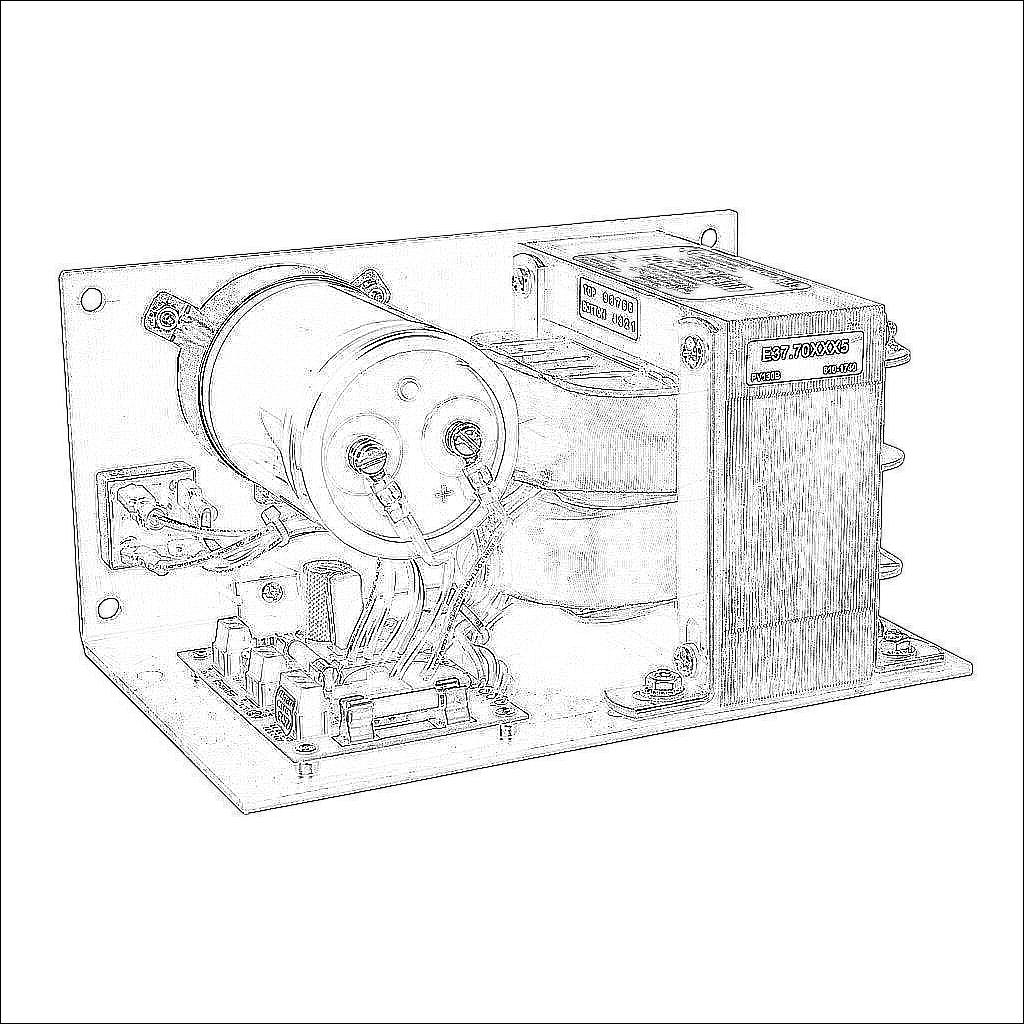

| Item | Power supply | |
| Power Supply Type | Unregulated linear | |
| Efficiency | 89% | |
| Output Configuration | Dual output | |
| Output | 70 VDC @ 5A/350W | |
| Output 2 | 5 VDC @ 0.5A/2.5W | |
| Output Voltage Range | 70 VDC at 5A unregulated, 5 VDC at 0.5A regulated | |
| Input voltage range | 120/240 VAC | |
| Input Voltage Selection Type | Switch | |
| Number of Input Phases | 1 | |
| Protection Type(s) |
| |
| Remote On/Off | No | |
| Voltage Monitoring | No | |
| Enclosure Type | Open frame | |
| Housing Material | Aluminum | |
| Mounting | Chassis | |
| Connector Type | Screw terminals | |
| NEC Class 2 | No | |
| Integrated UPS Battery Control | No | |
| Operating Temperature | 0 to 70 deg C | |
