| Technical Data | ||
|---|---|---|
| Brand | Metrol | |

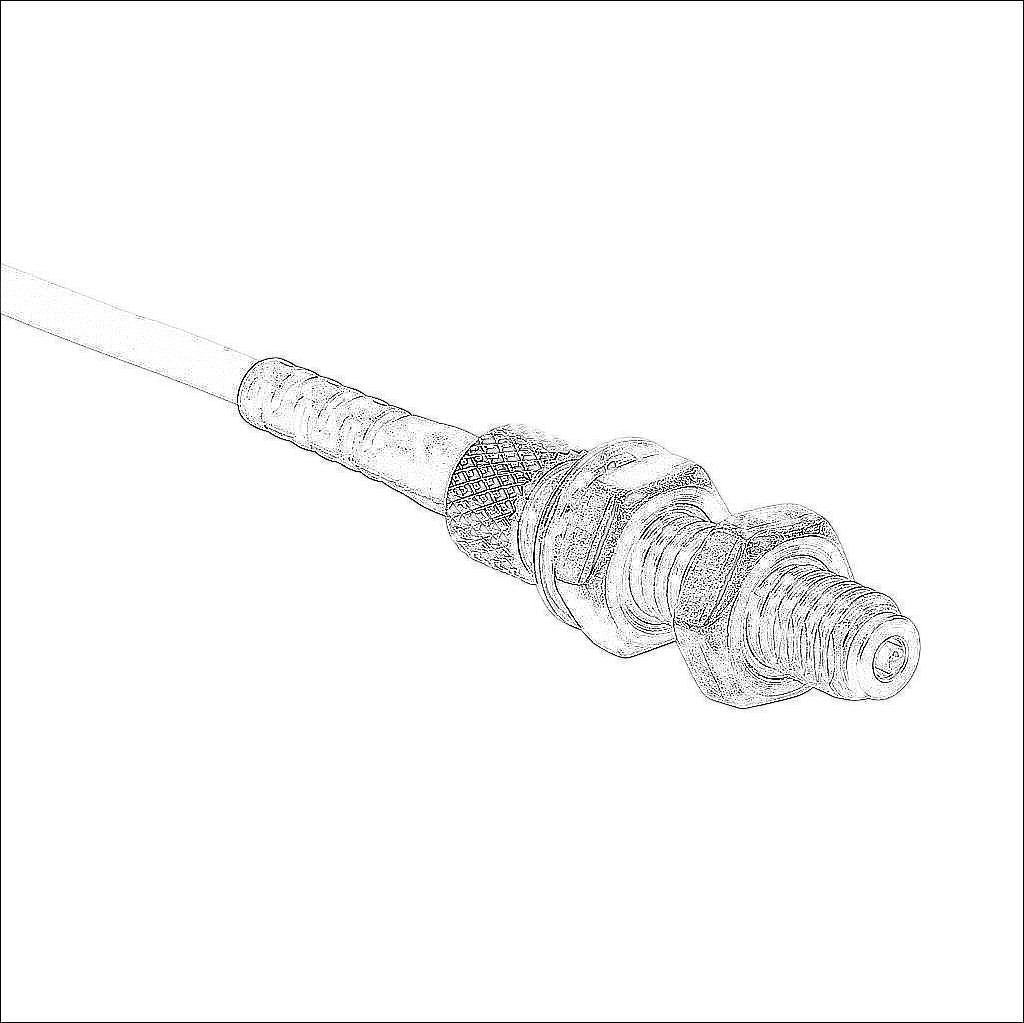

| Item | Limit switch | |
| Switch Type | Stopper bolt | |
| Diameter | 6mm | |
| Barrel Type | Threaded | |
| Length | 31.7mm | |
| Head Type | 3.4mm flat | |
| Actuator Type | 1.5mm plunger | |
| Contact Force | 2N | |
| Contact Type | (1) N.O. | |
| Cable Length | 6.5ft/2m | |
| Connection | Pigtail | |
| Conductor Size | 26 AWG | |
| Stroke | 0.7mm | |
| Repeatability | 0.01mm | |
| Impact Resistance | 0.4 joules | |
| Withstand Load | 5000N | |
| Thread Pitch | 1mm | |
| Material | Stainless steel | |
| Head Material | Stainless steel | |
| IP Rating | IP65 | |
| Operating Temperature | 0 to 80 deg C | |
| Indicating Type | LED indication | |
| Includes | Mounting hardware | |
