| Technical Data | ||
|---|---|---|
| Brand | Terminator | |

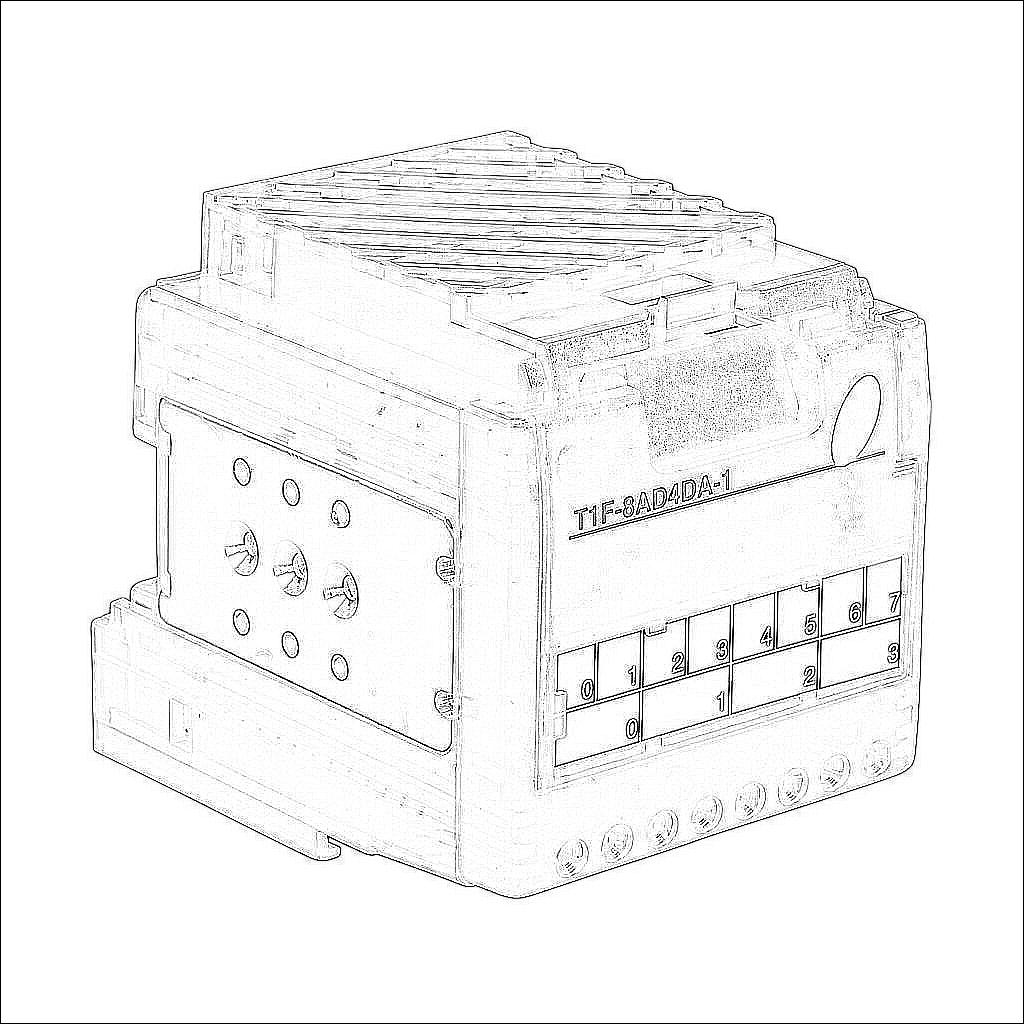

| Item | Combo module | |
| I/O Module Type | Analog | |
| Number of Input Channels | 8 | |
| Input Signal Type(s) | Current | |
| Analog Input Type | Sinking | |
| Number of Non-Isolated Input Commons | 1 | |
| Input Resolution | 14-bit | |
| Input Current Signal Range | 0-20 mA, 4-20 mA and +/- 20 mA | |
| Number of Output Channels | 4 | |
| Output Signal Type | Current | |
| Number of Non-Isolated Output Commons | 1 | |
| Output Resolution | 12-bit | |
| Output Current Signal Range | 4-20 mA | |
| External Power Requirement | 24 VDC | |
| Requires | T1K-08B or T1K-08B-1 terminal base | |
| Programming Software | Do-more Designer programming software v1.2 or later | |
