| Technical Data | ||
|---|---|---|
| Brand | Terminator | |

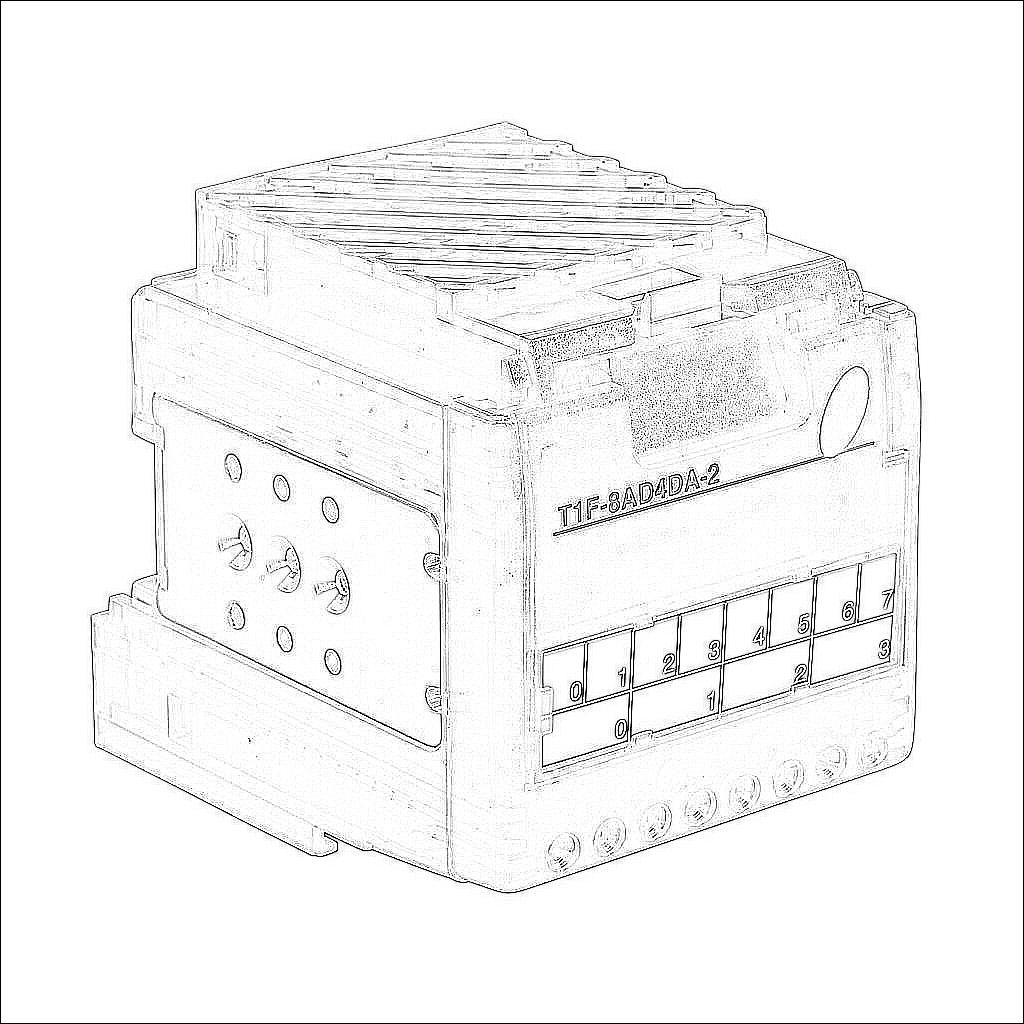

| Item | Combo module | |
| I/O Module Type | Analog | |
| Number of Input Channels | 8 | |
| Input Signal Type(s) | Voltage | |
| Number of Non-Isolated Input Commons | 1 | |
| Input Resolution | 14-bit | |
| Input Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC | |
| Number of Output Channels | 4 | |
| Output Signal Type | Voltage | |
| Number of Non-Isolated Output Commons | 1 | |
| Output Resolution | 12-bit | |
| Output Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC | |
| External Power Requirement | 24 VDC | |
| Requires | T1K-08B or T1K-08B-1 terminal base | |
| Programming Software | Do-more Designer programming software v1.2 or later | |
