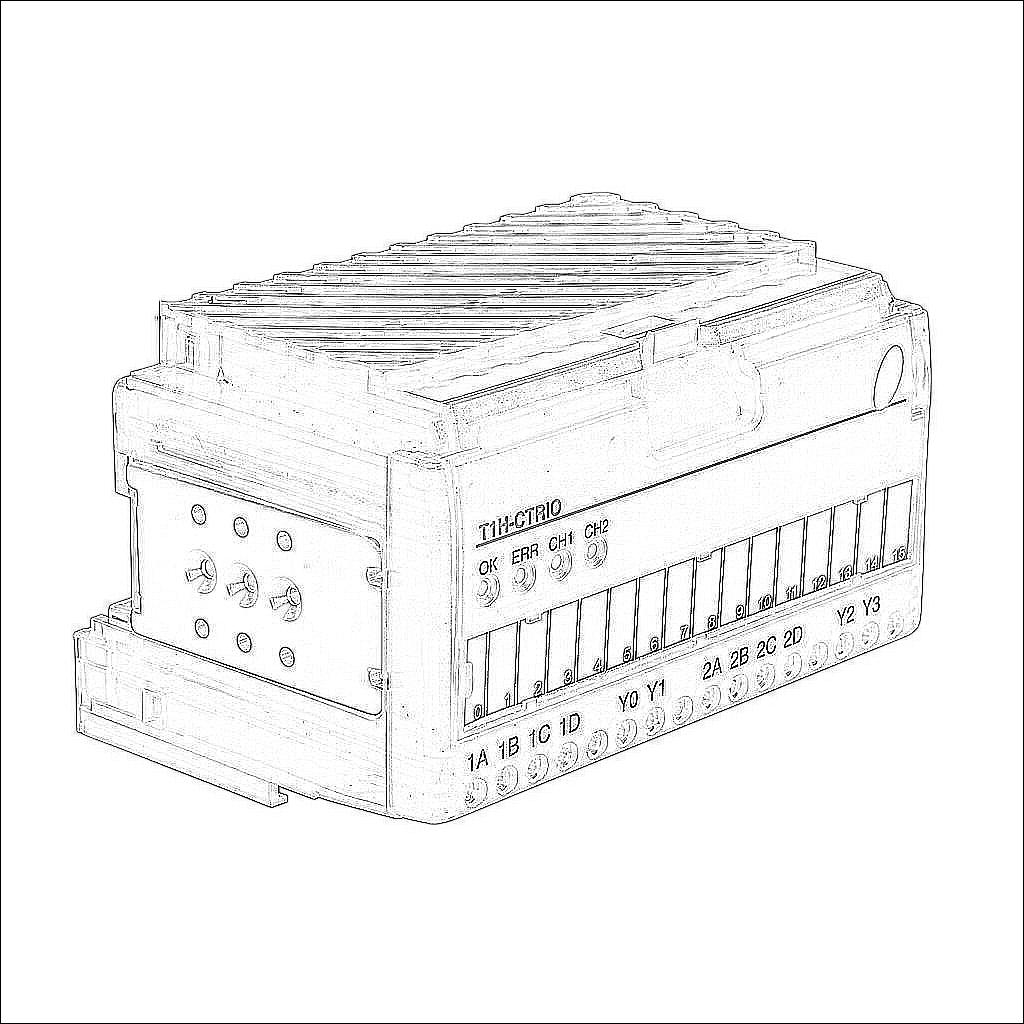

T1H-CTRIO

T1H-CTRIO

Terminator pulse combo module, 100 kHz maximum switching frequency, 8 high-speed input point(s), sinking/sourcing, single-ended encoder input(s), 4 high-speed output point(s), sinking/sourcing, single-ended output(s).

$758.75
/
Technical Data
BrandTerminator
ItemCombo module
I/O Module TypePulse
Maximum Switching Frequency100 kHz
Number of High-Speed Capable Input Points8
Nominal Input Voltage12-24 VDC
Discrete Input TypeSinking/sourcing
Number of Isolated Input Commons2
Number of Input Channels2
Encoder Input Type
  • push-pull (totem)
Number of High-Speed Capable Output Points4
Nominal Output Voltage6-24 VDC
Discrete Output TypeSinking/sourcing
Number of Isolated Output Commons4
Load Current1A/point
Number of Output Channels2
Pulse Output Channel Type
  • NPN open collector
  • PNP open collector
  • push-pull (totem)
High-Speed Counter(s)
  • up to (4) up counters
  • up to (4) down counters
  • up to (4) up/down counters
  • up to (2) quadrature (A and B) counters
Position Scaling
  • up to (4) up counters
  • up to (4) down counters
  • up to (4) up/down counters
  • up to (2) quadrature (A and B) counters
Interval Measurement
  • up to (4) single input (edge) timers
  • up to (4) dual input (dual edge) timers
Duration Measurement
  • up to (4) single input (edge) timers
Frequency Measurement
  • up to (4) up counters
  • up to (4) down counters
  • up to (4) up/down counters
  • up to (2) quadrature (A and B) counters
Output Pulse Mode(s)
  • up to (2) PTO linear step/direction outputs
  • up to (2) PTO rotary clockwise/counter-clockwise (CW/CCW) outputs
Axis Profile(s)
  • relative/absolute positioning
  • velocity mode
  • trapezoid
  • S-curve
  • homing
  • jogging
For Use WithT1K-16B or T1K-16B-1 terminal base, T1H-EBC, T1H-EBC100 and T1H-PBC base controllers and Do-more T1H series CPUs
Programming SoftwareDo-more Designer programming software v1.2 or later
