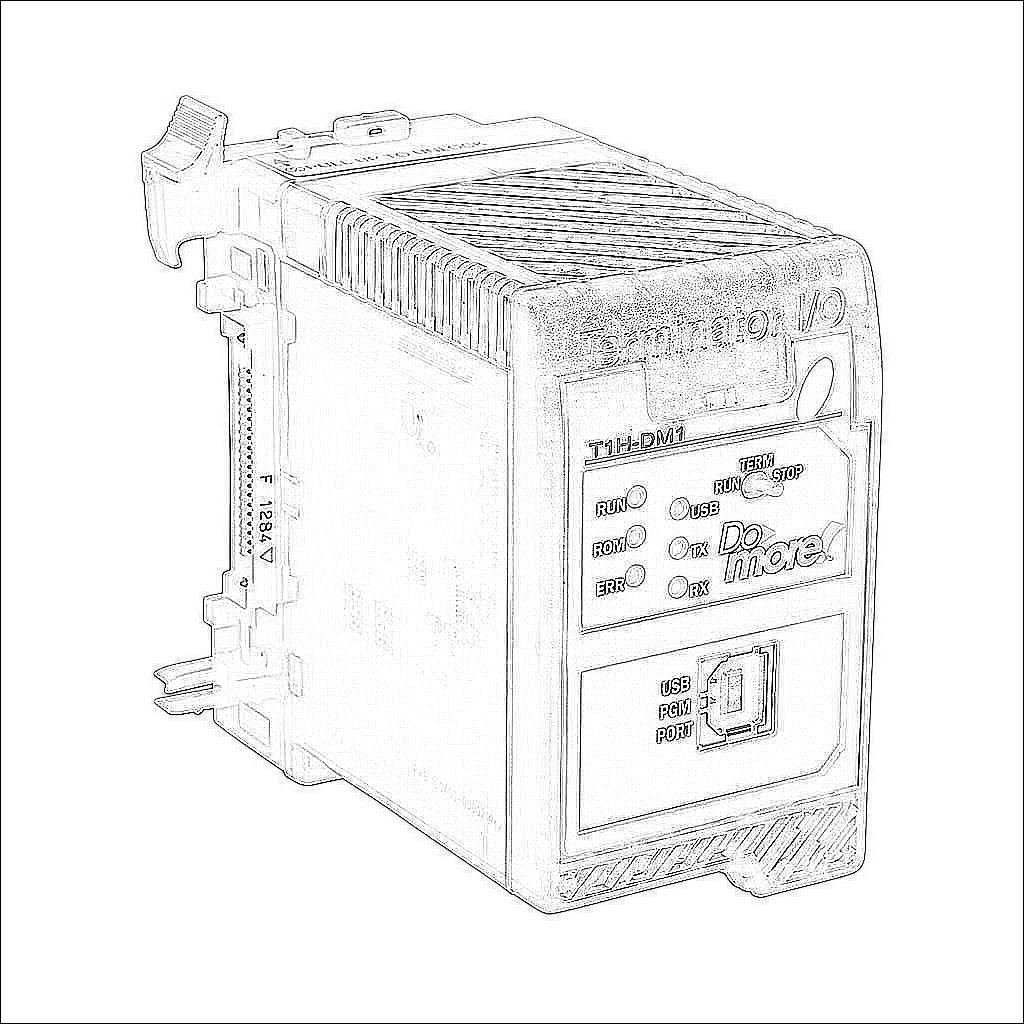

T1H-DM1

Do-more T1H CPU, 64k words ladder memory, (1) RS-232 (RJ12) and (1) USB B port(s), battery included.

$653.75

		Technical Data
	Brand	Do-more
	Item	CPU
	Series	T1H
	Total Memory	192k words
	Ladder Memory	64k words
	User Data Memory	128k words
	Programming Language	Ladder
	Programming Software	Do-more Designer programming software v1.2 or later
	Communication Port and Connection Type(s)	(1) RS-232 (RJ12) (1) USB B
	Port Protocol(s)	Do-more protocol Modbus RTU Master/Slave ASCII In/out K-sequence Slave programming and monitoring
	Port Speed(s)	up to 115.2k baud
	Real Time Clock/Calendar	Yes
	Retentive Memory	Yes
	Battery Backup	Yes
	Maximum Number of PID Loops	100+ (configurable to memory limit)
	Includes	D0-MC-BAT battery
	Dangerous Goods	Battery Installed: Yes Packaging Instructions: 970 UN Number: UN3091 Hazard Type: Lithium Batteries Battery Type: Button Lithium Content: 0.07 Replacement Battery: D0-MC-BAT Generic Battery: CR2032

Downloads

Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
