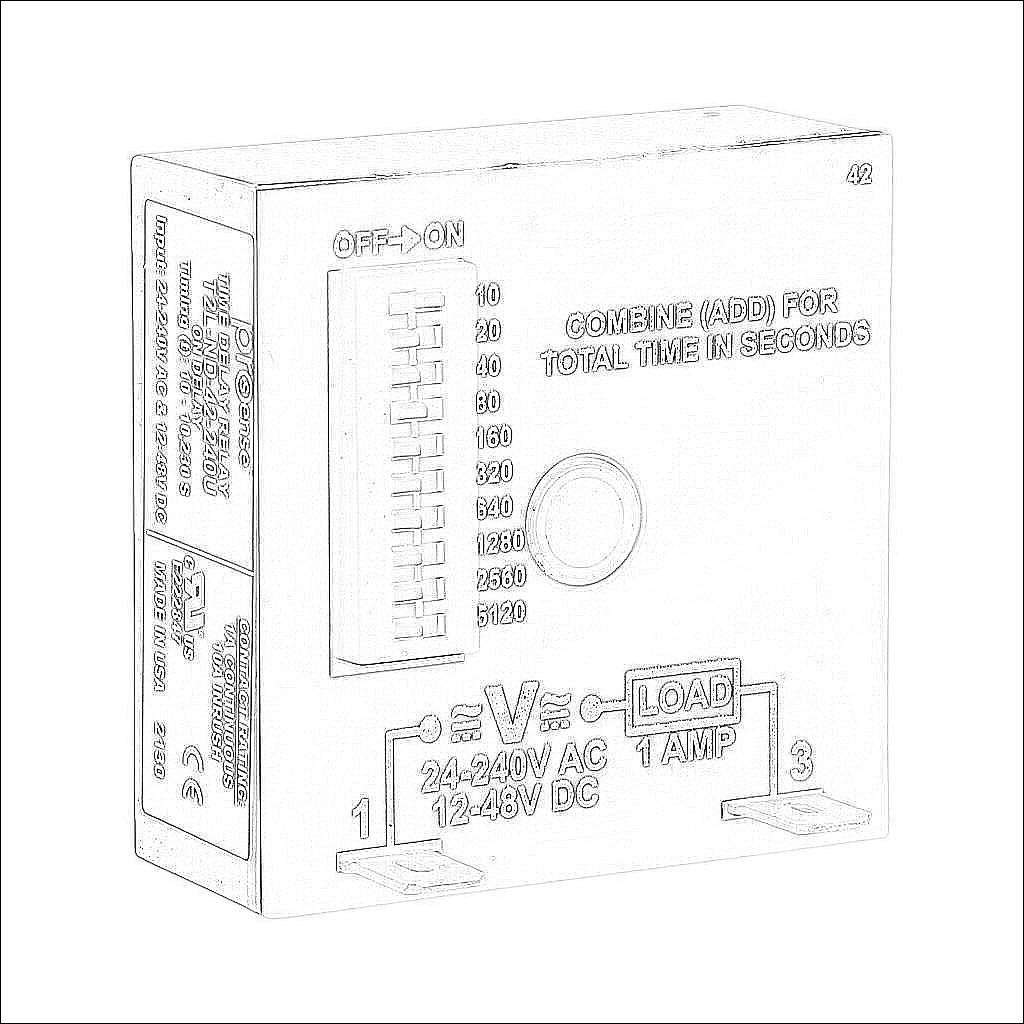

T2L-ND-42-240U

T2L-ND-42-240U

ProSense on-delay inline relay timer, 10 to 10,230 seconds selectable timing range, 24-240 VAC and 12-48 VDC operating voltage, 1A contact rating, (1) SPNO timed solid state relay output(s), surface mount, 1/4in male quick-connect terminal.

$46.88
/
Technical Data
BrandProSense
ItemInline relay timer
Timer TypeOn-delay
Timing Range10 to 10,230 seconds selectable
Operating Voltage24-240 VAC and 12-48 VDC
Timer Output Type(s)(1) SPNO timed solid state relay
Output Type(1) N.O.
Timer Function(s)
  • on-delay
Contact Rating1A
MountingSurface
Connector Type1/4in male quick-connect terminal
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
