| Technical Data | ||
|---|---|---|
| Brand | Atlas Wire | |
| Item | Wire | |
| Wire/Cable Type | TFFN | |
| UL Wire/Cable Type | TFFN and MTW | |
| Applicable Standards | UL 66, UL 758, UL 1063, UL 1408, UL 1452, UL 1316 and C22.2 No. 210 | |
| Application | Building | |
| Flexibility | Flexible | |
| Voltage Rating | 600V | |
| Conductors | Single conductor | |
| Conductor Size | 18 AWG | |
| Conductor Stranding | 16-stranded | |
| Conductor Material | Bare copper | |
| Conductor Insulation Material | PVC | |
| Conductor Insulation Color | Gray | |
| Jacket Material | Nylon | |
| Jacket Color | Clear | |
| Nominal Overall Cable Diameter | 0.09in | |

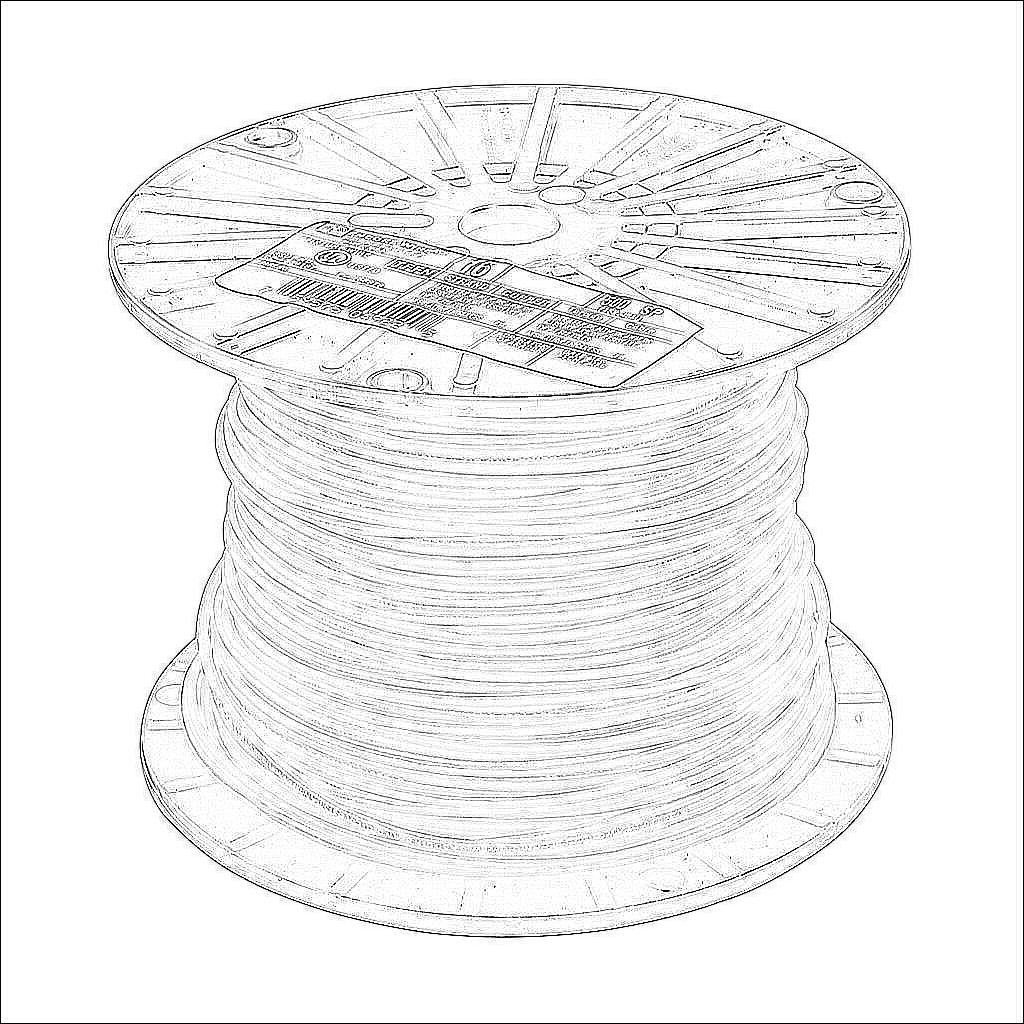

| Bulk Length | 500ft spool | |
