| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

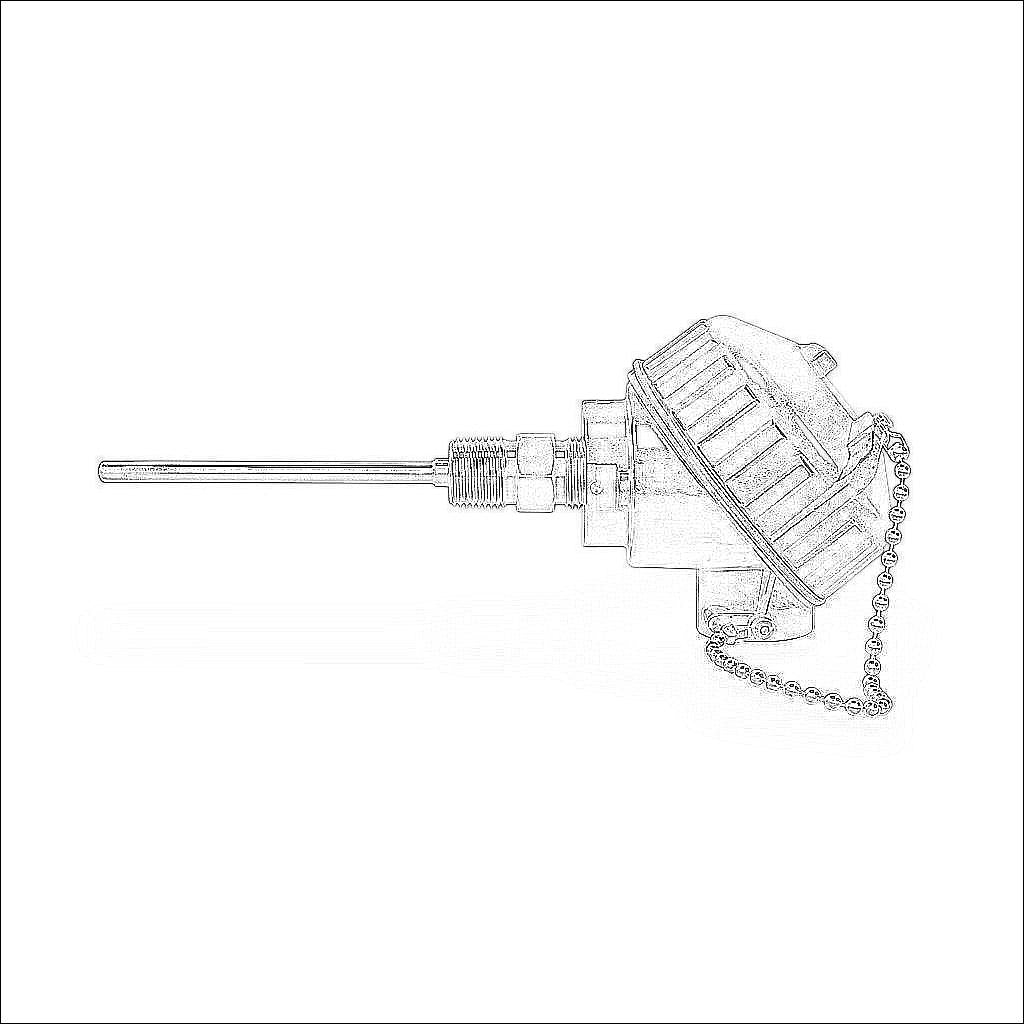

| Item | Temperature sensor | |
| Sensor Element | Type J thermocouple | |
| Sensor Type | Connection head spring-loaded probe | |
| Accuracy | Standard limits of error | |
| Junction Type | Ungrounded | |
| Insertion Length | 4in | |
| Probe Diameter | 1/4in | |
| Sheath Material | Stainless steel | |
| Sensor Insulation | Magnesium oxide (MgO) | |
| Process Connection | 1/2in male NPT | |
| Electrical Connection | Aluminum screw cover head with terminals | |
| Temperature Sensing Range | 32 to 1330 deg F | |
| IP Rating | IP66 | |
| NEMA Rating | 4X | |
| For Use With | Thermowells | |
