| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

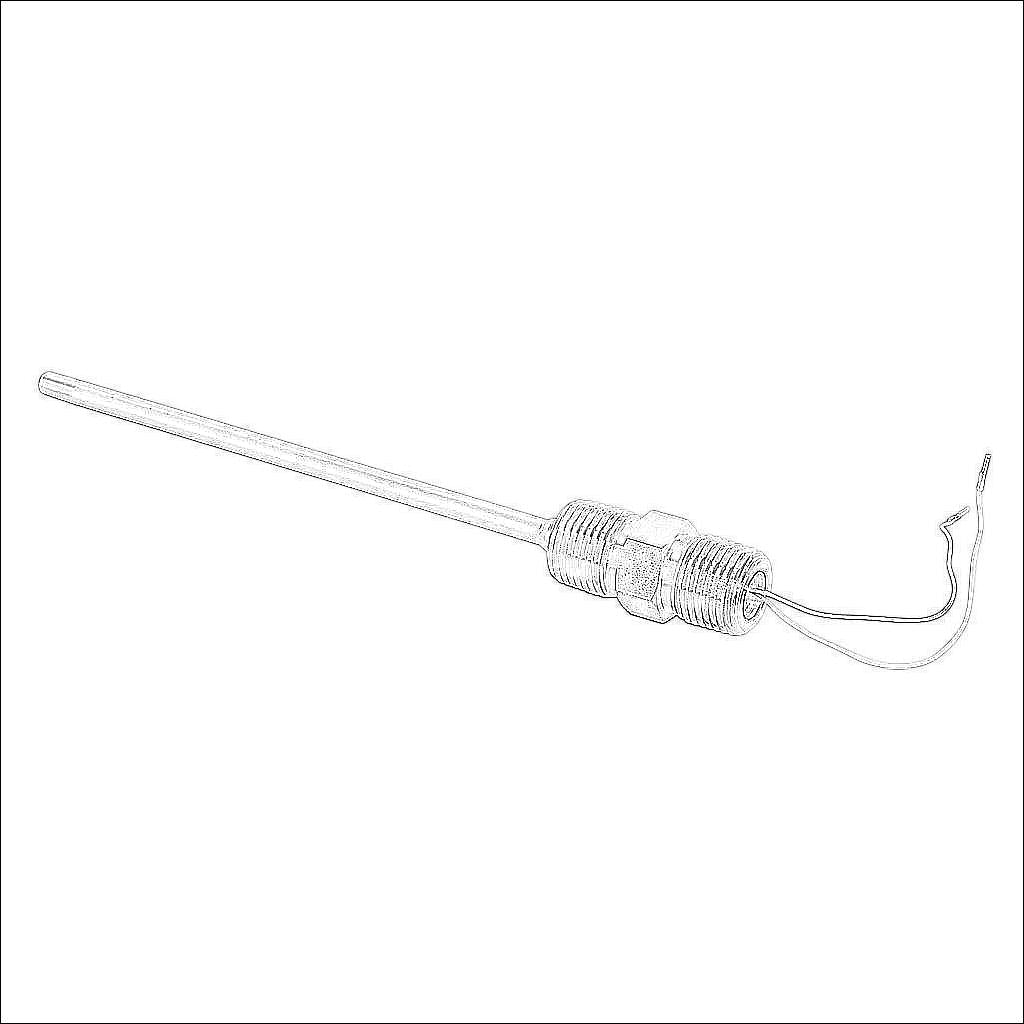

| Item | Temperature sensor | |
| Sensor Element | Type J thermocouple | |
| Sensor Type | Hex nipple spring-loaded probe | |
| Media Type | Liquid, water, oil, chemicals, gases and air | |
| Accuracy | Standard limits of error | |
| Junction Type | Ungrounded | |
| Insertion Length | 6in | |
| Probe Diameter | 1/4in | |
| Sheath Material | Stainless steel | |
| Sensor Insulation | Magnesium oxide (MgO) | |
| Process Connection | 1/2in male NPT | |
| Electrical Connection | 1/2in male NPT with 3in 24 AWG wire leads | |
| Conductor Insulation Material | 316L stainless steel | |
| Temperature Sensing Range | 32 to 1330 deg F | |
| For Use With | Thermowells | |
