| Technical Data | ||
|---|---|---|
| Brand | Datalogic | |

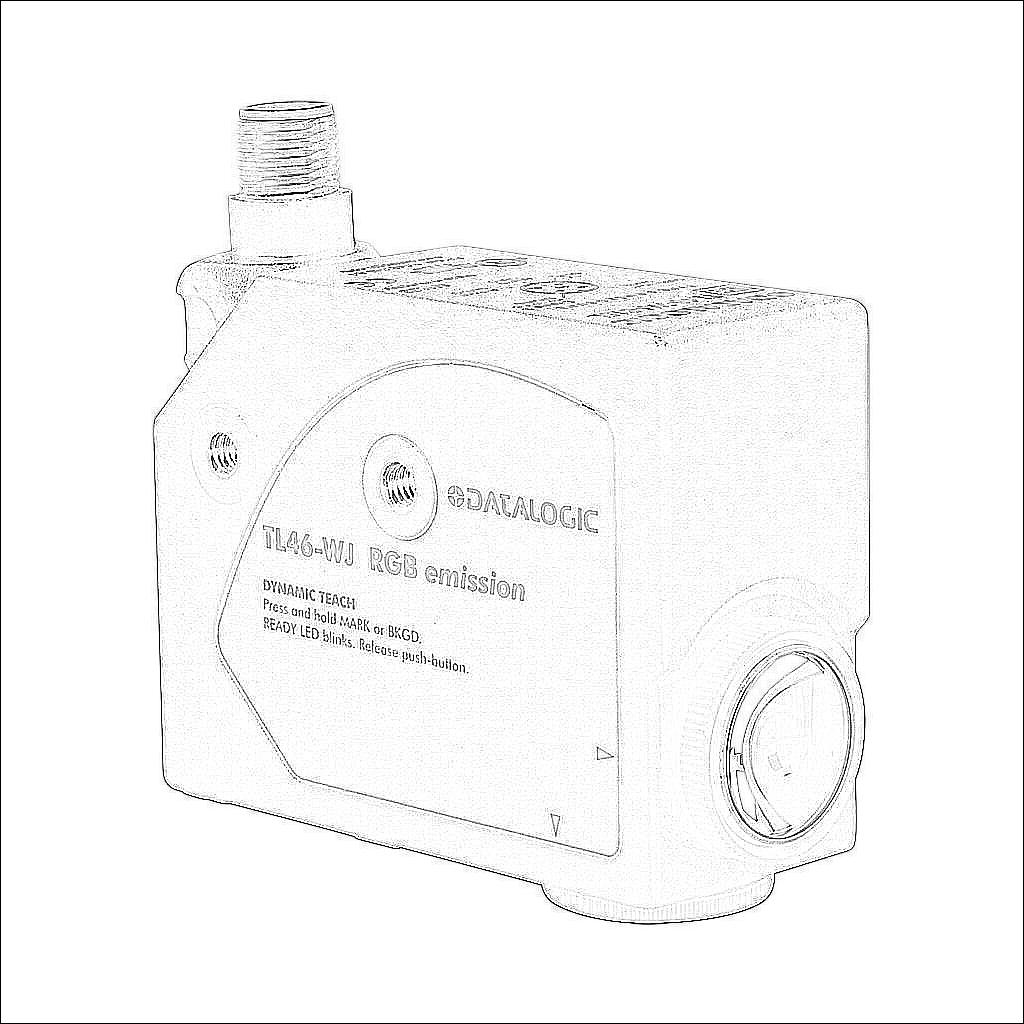

| Item | Contrast sensor | |
| Shape | Rectangular | |
| Housing Size | 81.5 x 31.9 x 60.7mm | |
| IP Rating | IP67 | |
| Application | Color and contrast and standard duty | |
| Housing Material | Aluminum | |
| Sensing Method | Diffuse | |
| Sensor Type | Print mark | |
| Operating Voltage | 10-30 VDC | |
| Switching Output | PNP | |
| Sensing Distance | 6-12mm | |
| Sensitivity | Teach-in button | |
| Operation Mode | Selectable light-on/dark-on | |
| Switching Frequency | 50 kHz | |
| Light Emission | RGB | |
| Spot Orientation | Horizontal | |
| Connection | 5-pin M12 quick-disconnect | |
| Additional Information | Purchase cable separately | |
