| Technical Data | ||
|---|---|---|
| Brand | JTEKT | |

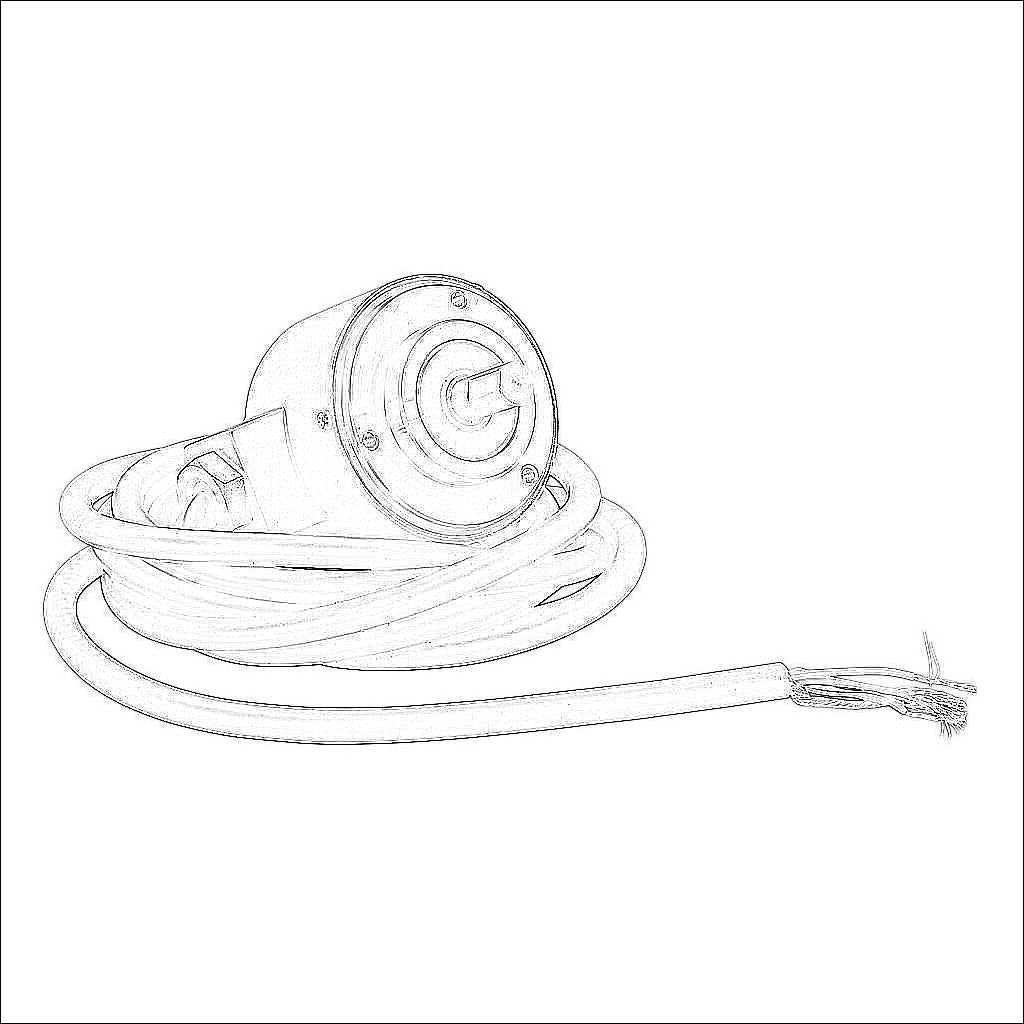

| Item | Encoder | |
| Series | TRD-N | |
| Feedback Type | Incremental (quadrature) | |
| Encoder Type | Rotary | |
| Voltage Rating | 5-30 VDC | |
| Encoder Output Type | Push-pull (totem) | |
| Duty Rating | Medium duty | |
| Programmable Encoder Resolution | No | |
| Encoder Resolution | 250 ppr | |
| Shaft Type | Solid | |
| Shaft Diameter | 8mm | |
| Radial Shaft Load | 50N | |
| Axial Shaft Load | 30N | |
| Frequency Response | 100 kHz | |
| Speed Rating | 3000rpm | |
| Flange Mount | No | |
| Encoder Body Diameter | 50mm | |
| Housing Material | Aluminum | |
| IP Rating | IP65 | |
| Protection Type(s) |
| |
| Cable Length | 6.5ft/2m | |
| Cable Diameter Size | 6.4mm | |
| Wire Size | 24 AWG | |
| Exit Orientation | Radial | |
| Connector Type | Pigtail | |
| Includes | Mounting hardware | |
