| Technical Data | ||
|---|---|---|
| Brand | JTEKT | |
| Item | Encoder | |

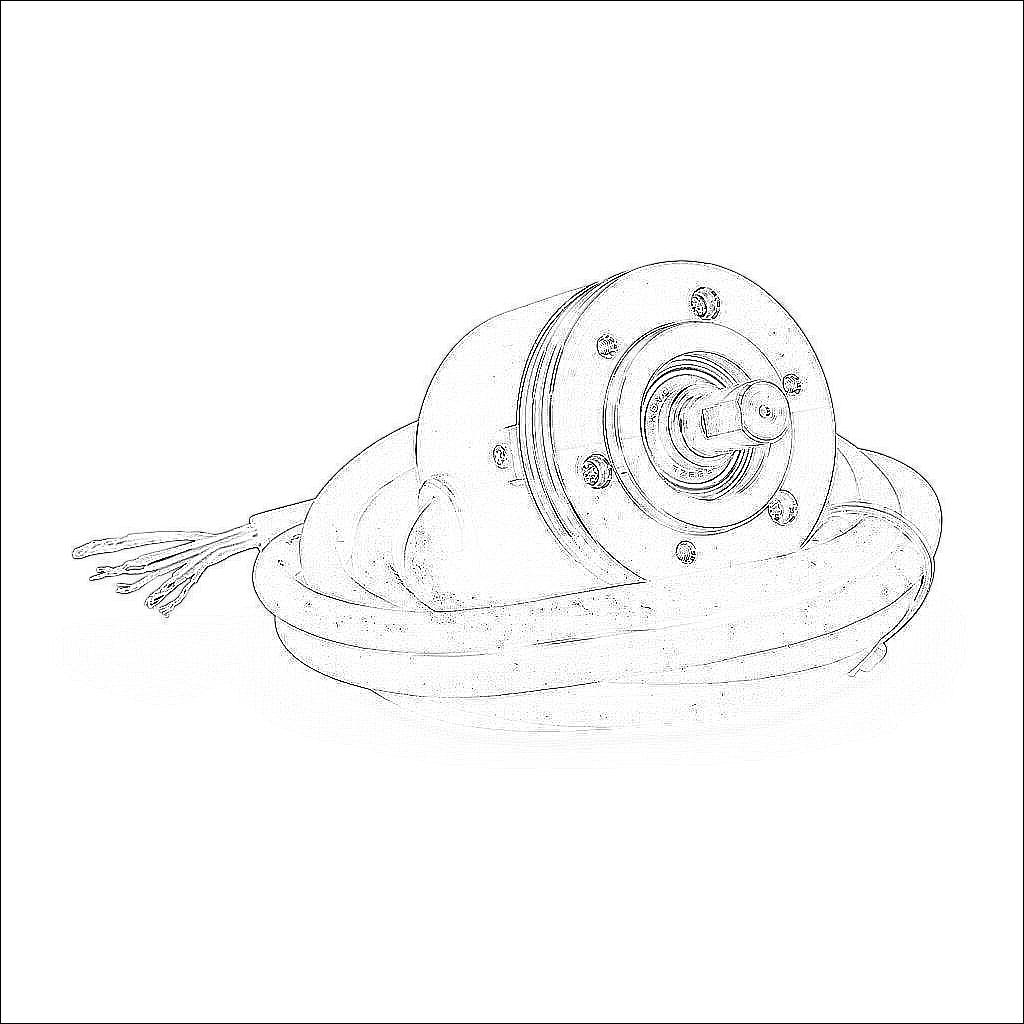

| Series | TRDA-20 | |
| Feedback Type | Incremental (quadrature) | |
| Encoder Type | Rotary | |
| Voltage Rating | 5 VDC | |
| Encoder Output Type | Line driver (differential) | |
| Duty Rating | Medium duty | |
| Programmable Encoder Resolution | No | |
| Encoder Resolution | 360 ppr | |
| Shaft Type | Solid | |
| Shaft Diameter | 3/8in | |
| Radial Shaft Load | 50N | |
| Axial Shaft Load | 30N | |
| Frequency Response | 200 kHz | |
| Speed Rating | 5000rpm | |
| Flange Mount | No | |
| Encoder Body Diameter | 2in | |
| Housing Material | Aluminum | |
| IP Rating | IP50 | |
| Cable Length | 6.5ft/2m | |
| Cable Diameter Size | 6.4mm | |
| Wire Size | 24 AWG | |
| Exit Orientation | Radial | |
| Connector Type | Pigtail | |
